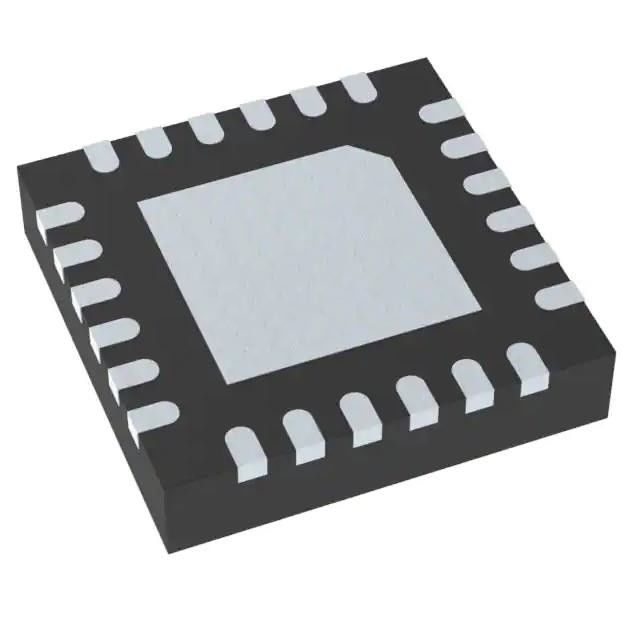

24VQFN Lithium Battery Charger IC 3A 4.2V BQ24296RGET Original
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BQ24296RGET |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | BQ24296RGET | Number Of Cells: | 1 |
|---|---|---|---|
| Charge Current - Max: | 3A | Battery Pack Voltage: | 4.2V |
| VVoltage - Supply (Max): | 6.2V | Interface: | I²C |
| Operating Temperature: | -40°C ~ 85°C (TA) | Package / Case: | 24-VFQFN Exposed Pad |
| High Light: | 24VQFN Lithium Battery Charger,BQ24296RGET,3A 4.2V Lithium Battery Charger IC |
||
Product Description
BQ24296RGET SMD LED Chip Battery Chargers IC Lithium Ion/Polymer 24-VQFN
Charger IC Lithium Ion/Polymer 24-VQFN (4x4) IC BATT CHG LI-ION 1CELL
Its low impedance power path optimizes switch-mode operation efficiency, reduces battery charge time and
extends battery life during discharging phase. The I2C serial interface with charging and system settings makes
the device a truly flexible solution.
Features of BQ24296RGET
• 90% High Efficiency Switch Mode 3-A Charger
• 3.9-V to 6.2-V Single Input USB-Compliant
• Charger with 6.4-V Over-Voltage Protection
– USB Host or Charging Port D+/D
- Detection Compatible to USB Battery Charger Spec (BC1.2)
– Supports Nonstandard 2-A/1-A Adapters Detection (bq24297)
– Input Voltage and Current Limit Supports USB 2.0 and USB 3.0
– Input Current Limit: 100 mA, 150 mA, 500 mA, 900 mA, 1 A, 1.5 A, 2 A, and 3 A
• USB OTG with Adjustable Output 4.55 V to 5.5 V at 1 A or 1.5 A
– Fast OTG Startup (22 ms Typ)
– 90% 5-V Boost Mode Efficiency
– Accurate ±15% Hiccup Mode Over-Current Protection
• Narrow VDC (NVDC) Power Path Management
– Instant System On with No Battery or Deeply Discharged Battery
– Ideal Diode Operation in Battery Supplement Mode
• 1.5-MHz Switching Frequency for Low Profile 1.2- mm Inductor
• Safety
– Battery Temperature Sensing for Charging and Discharging in OTG Mode
– Battery Charging Safety Timer
– Thermal Regulation and Thermal Shutdown
– Input and System Over-Voltage Protection
– MOSFET Over-Current Protection
• Charge Status Outputs for LED or Host Processor
• Maximum Power Tracking Capability by Input Voltage Regulation
• 20-µA Low Battery Leakage Current and Support Shipping Mode
• 4.00-mm x 4.00-mm VQFN-24 Package
Specifications of BQ24296RGET
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
BQ24296RGET
|
| Package | Tape & Reel (TR) |
|
Battery Chemistry
|
Lithium Ion/Polymer
|
|
Number of Cells
|
1
|
|
Current - Charging
|
Constant - Programmable
|
|
Programmable Features
|
-
|
|
Fault Protection
|
Over Current, Over Temperature, Over Voltage
|
|
Charge Current - Max
|
3A
|
|
Battery Pack Voltage
|
4.2V
|
|
Voltage - Supply (Max)
|
6.2V
|
|
Interface
|
I²C
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
24-VFQFN Exposed Pad
|
|
Supplier Device Package
|
24-VQFN (4x4)
|
|
Base Product Number
|
BQ24296
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of BQ24296RGET
• Tablet PC, Smart Phone, Internet Devices
• Portable Audio Speaker
• Handheld Computers, PDA, and POS
