SOT223 800V 10MA TRIAC Controller IC 800V 1A Z0109NN5AA4
Product Details:
| Place of Origin: | Original |
| Brand Name: | STMicroelectronics |
| Certification: | REACH |
| Model Number: | Z0109NN5AA4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | Z0109NN5AA4 | Voltage - Off State: | 800 V |
|---|---|---|---|
| Current - On State (It (RMS)) (Max): | 1 A | Voltage - Gate Trigger (Vgt) (Max): | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 8A, 8.5A | Current - Gate Trigger (Igt) (Max): | 10 MA |
| Current - Hold (Ih) (Max): | 10 MA | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | 800V 10MA TRIAC Controller IC,SOT223 TRIAC Controller IC,1A Z0109NN5AA4 |
||
Product Description

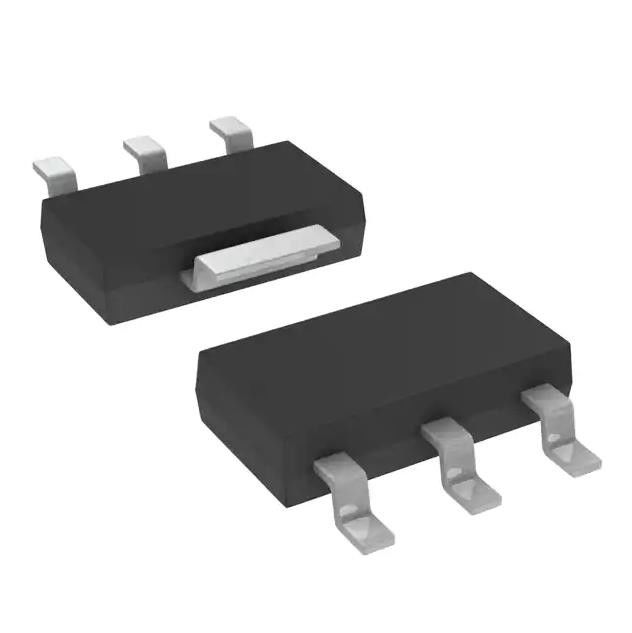

Z0109NN5AA4 SMD LED Chip TRIAC SENS GATE 800V 1A SOT223 800V 10 mA
TRIAC Logic - Sensitive Gate 800 V 1 A Surface Mount SOT-223
The Z01 series is suitable for general purpose AC switching applications. These devices are typically used in applications such as home appliances (electrovalve, pump, door lock, small lamp control), fan speed controllers,...
Features of Z0109NN5AA4
• On-state rms current, IT(RMS) 1 A
• Repetitive peak off-state voltage, VDRM/VRRM 600 or 800 V
• Triggering gate current, IGT (Q1) 3 to 25 mA
Specifications of Z0109NN5AA4
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Discrete Semiconductor Products
Thyristors
TRIACs
|
|
Mfr
|
STMicroelectronics
|
|
Series
|
-
|
|
Product
|
Z0109NN5AA4
|
| Package | Tape & Reel |
|
Triac Type
|
Logic - Sensitive Gate
|
|
Voltage - Off State
|
800 V
|
|
Current - On State (It (RMS)) (Max)
|
1 A
|
|
Voltage - Gate Trigger (Vgt) (Max)
|
1.3 V
|
|
Current - Non Rep. Surge 50, 60Hz (Itsm)
|
8A, 8.5A
|
|
Current - Gate Trigger (Igt) (Max)
|
10 mA
|
|
Current - Hold (Ih) (Max)
|
10 mA
|
|
Configuration
|
Single
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-261-4, TO-261AA
|
|
Supplier Device Package
|
SOT-223
|
|
Base Product Number
|
Z0109
|
Applications of Z0109NN5AA4
• AC switching
• Home appliances
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.30.0080 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Other Names |
497-4509-6
497-4509-2
-497-4509-2
497-4509-1
-497-4509-1
Z0109NN5AA4
|
| Standard Package | 1,000 |
Want to Know more details about this product
