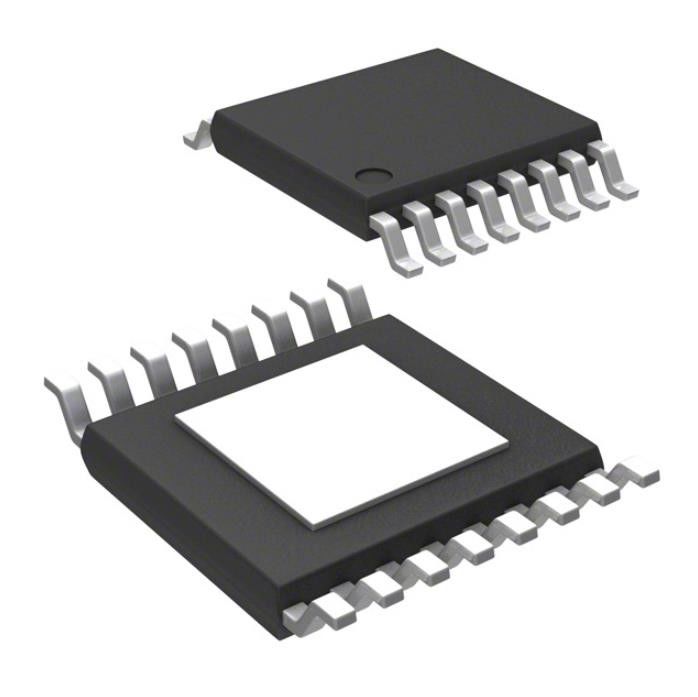

16mOhm Power Switch IC Surface Mount IC TPS2HB16BQPWPRQ1
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS2HB16BQPWPRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Ratio - Input:Output: | 0.042361111 | Output Configuration: | High Side |
|---|---|---|---|
| Output Type: | N-Channel | Interface: | On/Off |
| Voltage - Load: | 3V ~ 28V | Voltage - Supply (Vcc/Vdd): | Not Required |
| Current - Output (Max): | 60A | Rds On (Typ): | 16mOhm |
| High Light: | 16mOhm Power Switch IC,16mOhm Surface Mount IC,TPS2HB16BQPWPRQ1 |
||
Product Description
TPS2HB16BQPWPRQ1 Dip Ic Sockets Hydra 16 Mohm Otp B 296-TPS2HB16BQPWPRQ1TR-ND
Power Switch/Driver 1:1 N-Channel 60A 16-HTSSOP
Specifications of TPS2HB16BQPWPRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 3V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 60A |
| Rds On (Typ) | 16mOhm |
| Input Type | - |
| Features | - |
| Fault Protection | Current Limiting (Adjustable), Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-HTSSOP |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Base Product Number | TPS2HB16 |
Features of TPS2HB16BQPWPRQ1
• Qualified for automotive applications
• AEC-Q100 qualified with the following results:
– Device temperature grade 1: TA –40°C to 125°C ambient operating temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
– Withstands 40-V load dump
• Dual-channel smart high-side switch with 16-mΩ RON (TJ 25°C)
• Improve system level reliability through adjustable current limiting
– Current limit adjustable from 4.1 A to 48.5 A and internally fixed at 60 A
• Robust integrated output protection:
– Integrated thermal protection
– Protection against short to ground/battery
– Protection against reverse battery events including automatic switch on with reverse voltage
– Automatic shut off if loss of battery/ground occurs
– Integrated output clamp to demagnetize inductive loads
– Configurable fault handling
• Analog sense output can be configured to accurately measure:
– Load current – Device temperature
• Provides fault indication through SNS pin
– Detection of open load and short-to-battery
Applications of TPS2HB16BQPWPRQ1
• Automotive display module
• ADAS modules
• Seat comfort module
• Transmission control unit
• HVAC control module
• Body control modules
• LED lighting
• 2x27W Bulbs
Environmental & Export Classifications of TPS2HB16BQPWPRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
