TPS386000RGPT Dip Ic Sockets Ic Supervisor 4 Channel 20qfn 296-25181-1-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS386000RGPT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Digi-Key Programmable: | Not Verified | Type: | Multi-Voltage Supervisor |
|---|---|---|---|
| Number Of Voltages Monitored: | 4 | Voltage - Threshold: | Adjustable/Selectable |
| Output: | Open Drain Or Open Collector | Reset: | Active Low |
| Reset Timeout: | Adjustable/Selectable | Operating Temperature: | -40°C ~ 125°C (TJ) |
Product Description
TPS386000RGPT Dip Ic Sockets Ic Supervisor 4 Channel 20qfn 296-25181-1-ND

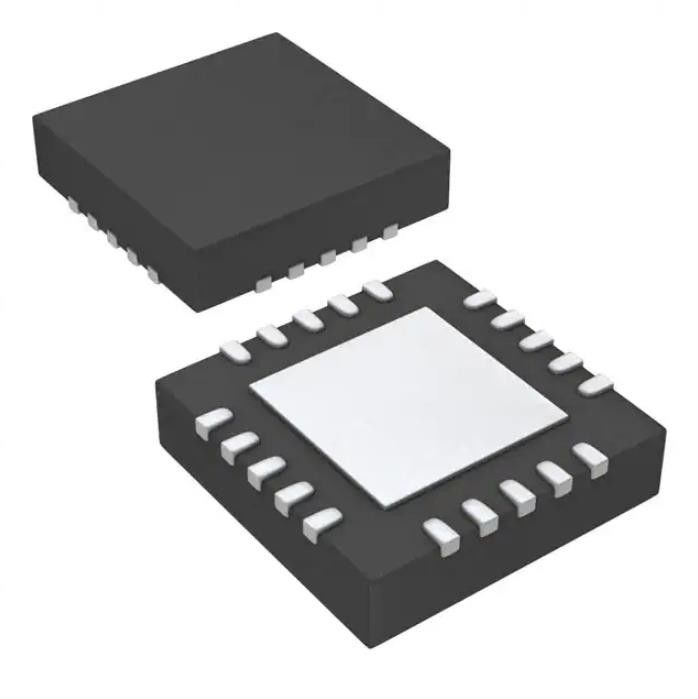

Supervisor Open Drain or Open Collector 4 Channel 20-QFN (4x4)
Specifications of TPS386000RGPT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | Multi-Voltage Supervisor |
| Number of Voltages Monitored | 4 |
| Voltage - Threshold | Adjustable/Selectable |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Reset Timeout | Adjustable/Selectable |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Base Product Number | TPS386000 |
Features of TPS386000RGPT
• Four Independent Voltage Supervisors
• Channel 1:
– Adjustable Threshold Down to 0.4 V
– Manual Reset (MR) Input • Channels 2, 3:
– Adjustable Threshold Down to 0.4 V
• Channel 4:
– Adjustable Threshold at Any Positive or Negative Voltage
– Window Comparator
• Adjustable Delay Time: 1.4 ms to 10 s
• Threshold Accuracy: 0.25% Typical
• Very Low Quiescent Current: 11 μA Typical
• Watchdog Timer With Dedicated Output
• Well-Controlled Output During Power Up
• TPS386000: Open-Drain RESETn and WDO
• TPS386040: Push-Pull RESETn and WDO
• Package: 4-mm × 4-mm, 20-Pin VQFN
Applications of TPS386000RGPT
• All DSP and Microcontroller Applications
• All FPGA and ASIC Applications
• Telecom and Wireless Infrastructure
• Industrial Equipment
• Analog Sequencing
Environmental & Export Classifications of TPS386000RGPT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
