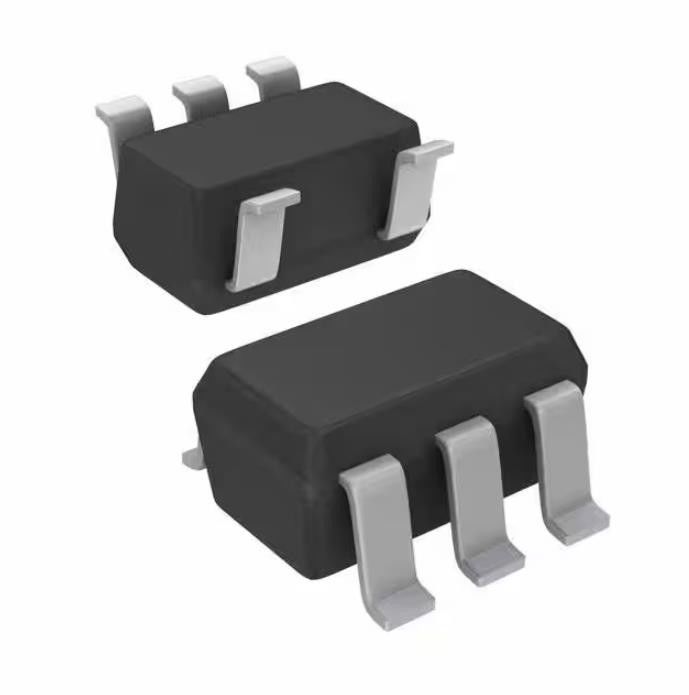

TPS3840DL30DBVR Dip Ic Sockets Ic Supervisor 1 Channel Sot23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS3840DL30DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Digi-Key Programmable: | Not Verified | Type: | Power Supply Monitor |
|---|---|---|---|
| Number Of Voltages Monitored: | 1 | Voltage - Threshold: | 3V |
| Output: | Open Drain Or Open Collector | Reset: | Active Low |
| Reset Timeout: | 619ms Typical | Operating Temperature: | -40°C ~ 125°C (TJ) |
Product Description
TPS3840DL30DBVR Dip Ic Sockets Ic Supervisor 1 Channel Sot23-5
Supervisor Open Drain or Open Collector 1 Channel SOT-23-5
Specifications of TPS3840DL30DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | Power Supply Monitor |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 3V |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Reset Timeout | 619ms Typical |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS3840 |
Features of TPS3840DL30DBVR
• Wide operating voltage: 1.5 V to 10 V
• Nano supply current: 300 nA (Typ), 700 nA (Max)
• Fixed threshold voltage (VIT-)
– Threshold from 1.6 V to 4.9 V in 0.1-V steps
– High accuracy: 1% (Typ), 1.5% (Max)
– Built-in hysteresis (VIT+)
– 1.6 V VIT- ≤ 3.0 V 100 mV (Typical)
– 3.1 V ≤ VIT- 4.9 V 200 mV (Typical)
• Start-up delay (tSTRT): 220 µs (Typ), 350 µs (Max)
• Programmable reset time delay (tD):
– 50 µs (no capacitor) to 6.2 s (10-µF)
• Active-low manual reset (MR)
• Three output topologies:
– TPS3840DL: open-drain, active-low (RESET), requires pull-up resistor
– TPS3840PL: push-pull, active-low (RESET)
– TPS3840PH: push-pull, active-high (RESET)
• Wide temperature range:
–40°C to +125°C
• Package: SOT23-5 (DBV)
Applications of TPS3840DL30DBVR
• Grid infrastructure: circuit breaker, smart meter, other monitoring and protection equipment
• Factory automation: field transmitter, PLC.
• Building automation: fire safety, smoke detector, and HVAC
• Electronic point of sale
• Portable, battery-powered systems
Environmental & Export Classifications of TPS3840DL30DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
