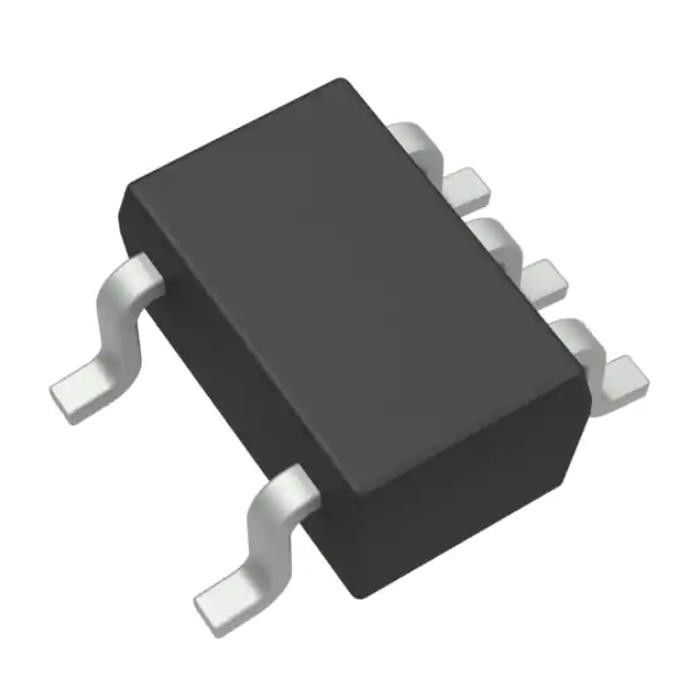

TPS3801K33DCKR Dip Ic Sockets Ic Supervisor 1 Channel Sc70-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS3801K33DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Type: | Simple Reset/Power-On Reset | Number Of Voltages Monitored: | 1 |
| Voltage - Threshold: | 2.93V | Output: | Push-Pull, Totem Pole |
| Reset: | Active Low | Reset Timeout: | 120ms Minimum |
Product Description
TPS3801K33DCKR Dip Ic Sockets Ic Supervisor 1 Channel Sc70-5
Supervisor Push-Pull, Totem Pole 1 Channel SC-70-5
Specifications of TPS3801K33DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 2.93V |
| Output | Push-Pull, Totem Pole |
| Reset | Active Low |
| Reset Timeout | 120ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | TPS3801 |
Features of TPS3801K33DCKR
• Small, 5-Pin SC-70 (SOT-323) Package
• Supply Current of 9 mA
• Power-On Reset Generator With Fixed Delay Time
– TPS3800 = 100 ms
– TPS3801 = 200 ms
– TPS3802 = 400 ms
• Precision Supply Voltage Monitor 1.8 V, 2.5 V, 2.7 V, 3 V, 3.3 V, 5 V, and Adjustable
• Manual Reset Input (Except TPS3801-01)
• Temperature Range: –40°C to +85°C APPLICATIONS
• Supply Current of 9 mA
• Power-On Reset Generator With Fixed Delay Time
– TPS3800 = 100 ms
– TPS3801 = 200 ms
– TPS3802 = 400 ms
• Precision Supply Voltage Monitor 1.8 V, 2.5 V, 2.7 V, 3 V, 3.3 V, 5 V, and Adjustable
• Manual Reset Input (Except TPS3801-01)
• Temperature Range: –40°C to +85°C APPLICATIONS
Applications of TPS3801K33DCKR
• Applications Using DSPs, Microcontrollers, or Microprocessors
• Wireless Communication Systems
• Portable/Battery-Powered Equipment
• Programmable Controls
• Intelligent Instruments
• Industrial Equipment
• Notebook/Desktop Computers
• Automotive Systems
• Wireless Communication Systems
• Portable/Battery-Powered Equipment
• Programmable Controls
• Intelligent Instruments
• Industrial Equipment
• Notebook/Desktop Computers
• Automotive Systems
Environmental & Export Classifications of TPS3801K33DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
