TPS26630RGET Dip Ic Sockets Ic Electronic Fuse 2% 24vqfn 296-TPS26630RGETCT-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS26630RGET |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Electronic Fuse |
|---|---|---|---|
| Sensing Method: | High-Side | Accuracy: | ±2% |
| Voltage - Input: | 4.5V ~ 60V | Current - Output: | 6A |
| Operating Temperature: | -40°C ~ 125°C (TA) | Mounting Type: | Surface Mount |
Product Description
TPS26630RGET Dip Ic Sockets Ic Electronic Fuse 2% 24vqfn 296-TPS26630RGETCT-ND

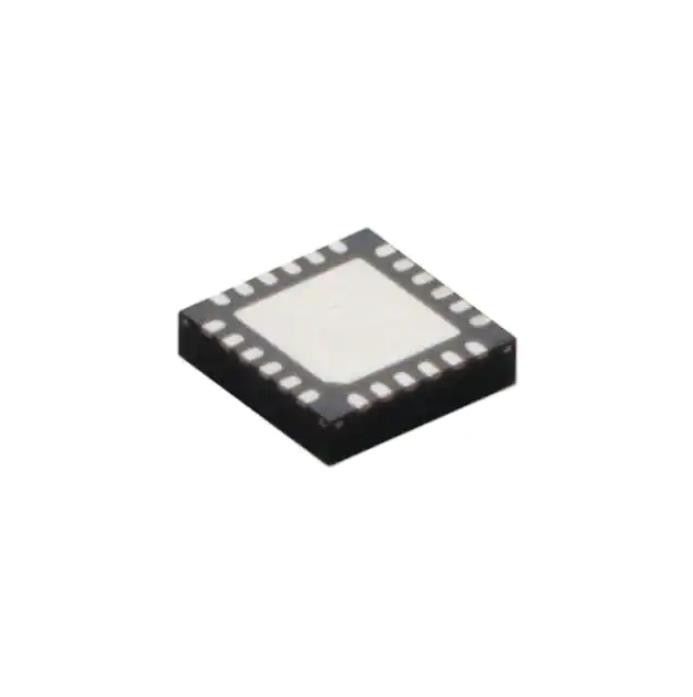

Electronic Fuse Regulator High-Side 6A 24-VQFN (4x4)
Specifications of TPS26630RGET
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Current Regulation/Management | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Electronic Fuse |
| Sensing Method | High-Side |
| Accuracy | ±2% |
| Voltage - Input | 4.5V ~ 60V |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Base Product Number | TPS26630 |
Features of TPS26630RGET
• 4.5-V to 60-V operating voltage, 67-V absolute maximum
• Integrated 60-V, 31-mΩ RON hot-swap FET
• Reverse polarity protection and reverse current blocking support with an external N-channel FET
• 0.6-A to 6-A adjustable current limit (± 7%)
• Electrical fast transients (IEC61000-4-4) immunity and load protection during surge (IEC 61000-4-5) with Class-A system performance
• Fast reverse current blocking (0.17 µs)
• Variants with adjustable output power limiting (±6%)
• Adjustable UVLO, OVP Cut Off, output slew rate control for inrush current limiting
• Charges large and unknown capacitive loads through thermal regulation during device power up
• Variants with 35-V and 39-V maximum over voltage clamp
• Power Good Output (PGOOD)
• Selectable over current fault response options between auto-retry and latch off (MODE)
• Variants with 2x pulse over current support
• Analog current monitor (IMON) output (± 6%)
• UL 2367 recognized
– File No. E169910
– RILIM ≥ 3 kΩ
• IEC 62368-1 certified
Applications of TPS26630RGET
• Factory automation and control – PLC, DCS, HMI, I/O modules, sensor hubs
• Motor drives – CNC, encoder supply
• Electronic circuit breakers
Environmental & Export Classifications of TPS26630RGET
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
