TPS2561DRCR Dip Ic Sockets Ic Pwr Switch N-Chan 1:2 10vson 296-37670-1-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS2561DRCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Slew Rate Controlled, Status Flag | Voltage - Load: | 2.5V ~ 6.5V |
|---|---|---|---|
| Voltage - Supply (Vcc/Vdd): | Not Required | Current - Output (Max): | 2.5A |
| Rds On (Typ): | 44mOhm | Input Type: | Non-Inverting |
| Operating Temperature: | Current Limiting (Adjustable), Over Temperature, UVLO | Voltage - Load 2.5V ~ 6.5V Voltage - Supply (Vcc/Vdd) Not Required Current - Output (Max) 2.5A Rds O: | -40°C ~ 125°C (TJ) |
Product Description

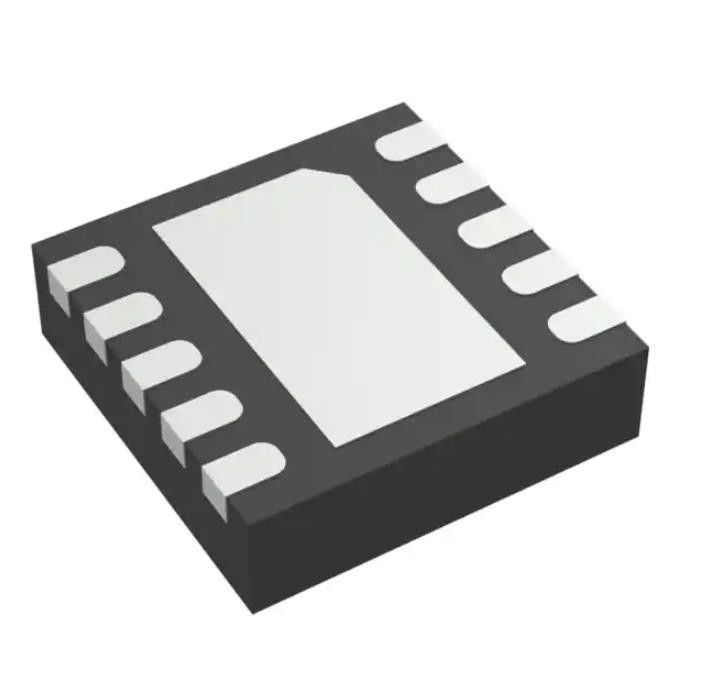

TPS2561DRCR Dip Ic Sockets Ic Pwr Switch N-Chan 1:2 10vson 296-37670-1-ND
Power Switch/Driver 1:2 N-Channel 2.5A 10-VSON (3x3)
Specifications of TPS2561DRCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 0.043055556 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.5V ~ 6.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A |
| Rds On (Typ) | 44mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-VSON (3x3) |
| Package / Case | 10-VFDFN Exposed Pad |
| Base Product Number | TPS2561 |
Features of TPS2561DRCR
• Two separate current limiting channels
• Meets USB current-limiting requirements
• Adjustable current limit: 250 mA to 2.8 A (typ)
• ± 7.5% current-limit accuracy at 2.8 A
• Fast overcurrent response: 3.5 μs (typ)
• Two 44-mΩ high-side MOSFETs
• Operating range: 2.5 V to 6.5 V
• 2-μA maximum standby supply current
• Built-in soft-start
• 15-kV, 8-kV system-level ESD capable
• UL listed: file no. E169910
• CB and Nemko certified
Applications of TPS2561DRCR
• USB ports, hubs
• Digital TVs
• Set-top boxes
• VOIP phones
Environmental & Export Classifications of TPS2561DRCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
