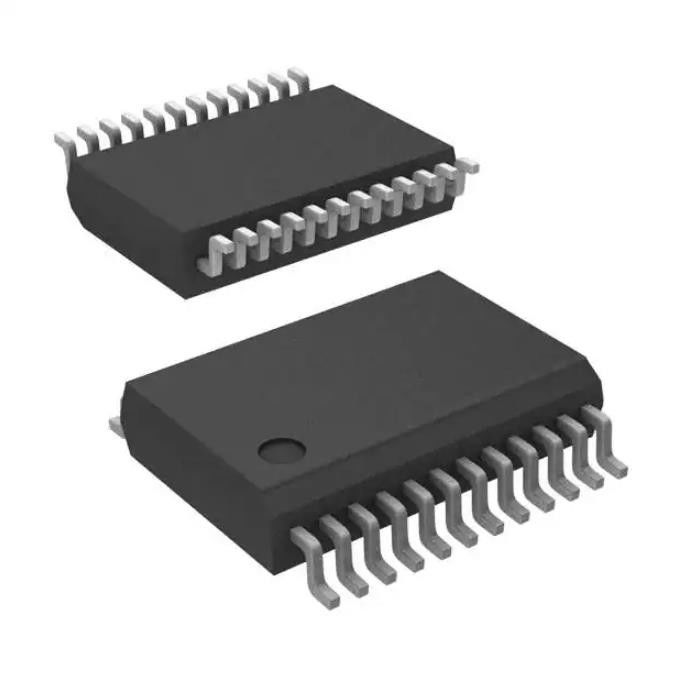

TPS2075DBR Dip Ic Sockets Ic Pwr Switch N-Chan 1:4 24ssop TPS2075DBR-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS2075DBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Power Good, Status Flag | Rds On (Typ): | 100mOhm |
|---|---|---|---|
| Fault Protection: | Over Temperature | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Supplier Device Package: | 24-SSOP |
| Base Product Number: | 24-SSOP (0.209", 5.30mm Width) | Rds On (Typ) 100mOhm Features Power Good, Status Flag Fault Protection Over Temperature Operating Te: | TPS2075 |
Product Description
TPS2075DBR Dip Ic Sockets Ic Pwr Switch N-Chan 1:4 24ssop TPS2075DBR-ND
Power Switch/Driver 1:4 N-Channel 100mA 24-SSOP
Specifications of TPS2075DBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Switch Type | USB Switch |
| Number of Outputs | 4 |
| Ratio - Input:Output | 0.044444444 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 100mA |
| Rds On (Typ) | 100mOhm |
| Input Type | - |
| Features | Power Good, Status Flag |
| Fault Protection | Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SSOP |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| Base Product Number | TPS2075 |
Features of TPS2075DBR
• Complete USB Hub Power Solutio
• Meets USB Specifications 1.1 and 2.0
• Independent Thermal and Short-Circuit Protect
• 3.3-V Regulator for USB Hub Contro
• Overcurrent Logic Ou
• 4.5-V to 5.5-V Operating Rating
• CMOS- and TTL-Compatible Enable Inputs
• 185 µA Bus-Power Supply Current
• Available in 24-Pin SSOP Package
• –40°C to 85°C Ambient Temperature Range
Applications of TPS2075DBR
• Hosts/self-powered hubs (SPH)
• Bus-powered hubs (BPH)
• Low-power, bus-powered functions
• High-power, bus-powered functions
• Self-powered funct
Environmental & Export Classifications of TPS2075DBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
