TPS1HB08BQPWPRQ1 Dip 8mohm Otp B 296-Tps1hb 08bqpwprq1ct-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS1HB08BQPWPRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Switch Type: | General Purpose |
|---|---|---|---|
| Number Of Outputs: | 1 | Ratio - Input:Output: | 1:01 |
| Output Configuration: | High Side | Output Type: | N-Channel |
| Current - Output (Max): | 3V ~ 28V | Product Status Active Switch Type General Purpose Number Of Outputs 1 Ratio - Input:Output 1:01 Outp: | 70A |
Product Description
TPS1HB08BQPWPRQ1 Dip 8mohm Otp B 296-Tps1hb 08bqpwprq1ct-Nd

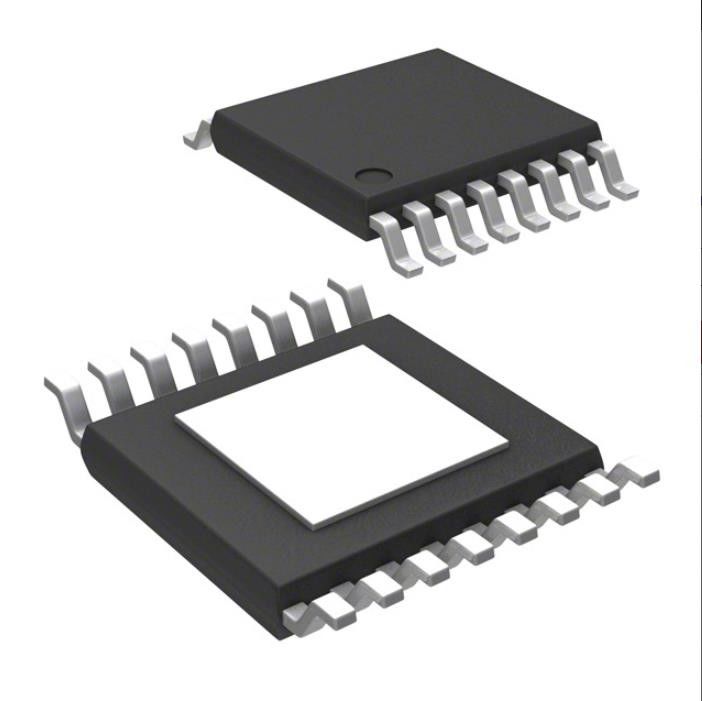

Power Switch/Driver 1:1 N-Channel 70A 16-HTSSOP
Specifications of TPS1HB08BQPWPRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | - |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 28V |
| Current - Output (Max) | 70A |
| Rds On (Typ) | 8mOhm |
| Input Type | - |
| Features | - |
| Fault Protection | Current Limiting (Adjustable), Over Current, Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-HTSSOP |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Base Product Number | TPS1HB08 |
Features of TPS1HB08BQPWPRQ1
• AEC-Q100 qualified for automotive applications
– Temperature grade 1: –40°C to 125°C
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
– Withstands 40-V load dump
• Functional safety capable
– Documentation available to aid functional safety system design
• Single-channel smart high-side switch with8-mΩ RON (TJ 25°C)
• Improve system level reliability through adjustable current limiting
– Current limit set-point from 6.4 A to 70 A
– Version F: 94 A fixed ILIM
• Robust integrated output protection:
– Integrated thermal protection
– Protection against short to ground and battery
– Protection against reverse battery events including automatic switch on of FET with reverse voltage
– Automatic shut off on loss of battery and ground
– Integrated output clamp to demagnetize inductive loads
– Configurable fault handling
• Analog sense output can be configured to accurately measure:
– Load current
– Device temperature
• Provides fault indication through SNS pin or FLT pin
– Detection of open load and short-to-battery
Applications of TPS1HB08BQPWPRQ1
• Automotive display module
• 65-W Automotive headlight
• ADAS modules
• Seat comfort module
• Transmission control unit
• HVAC control module
• Body control modules
• Incandescent and LED lighting
Environmental & Export Classifications of TPS1HB08BQPWPRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
