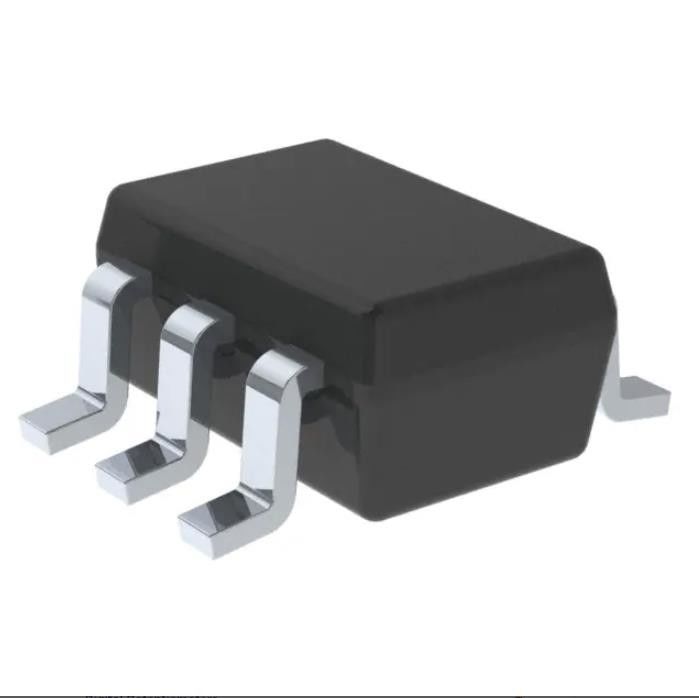

TPL0401B-10DCKR Dip Ic Dgtl Pot 10kohm 128tap Sc70-6 296-29677-1-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPL0401B-10DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Taper: | Linear | Configuration: | Potentiometer |
| Number Of Circuits: | 1 | Number Of Taps: | 128 |
| Interface: | 10k | Product Status Active Digi-Key Programmable Not Verified Taper Linear Configuration Potentiometer Nu: | I²C |
Product Description
TPL0401B-10DCKR Dip Ic Dgtl Pot 10kohm 128tap Sc70-6 296-29677-1-ND
Digital Potentiometer 10k Ohm 1 Circuit 128 Taps I²C Interface SC-70-6
Specifications of TPL0401B-10DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital Potentiometers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Taper | Linear |
| Configuration | Potentiometer |
| Number of Circuits | 1 |
| Number of Taps | 128 |
| Resistance (Ohms) | 10k |
| Interface | I²C |
| Memory Type | Volatile |
| Voltage - Supply | 2.7V ~ 5.5V |
| Features | - |
| Tolerance | ±20% |
| Temperature Coefficient (Typ) | 22ppm/°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-6 |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Operating Temperature | -40°C ~ 125°C |
| Resistance - Wiper (Ohms) (Typ) | 35 |
| Base Product Number | TPL0401 |
Features of TPL0401B-10DCKR
• Single-Channel, 128-Position Resolution
• 10-kΩ End-to-End Resistance Options
• Low Temperature Coefficient: 22 ppm/°C
• I2C Serial Interface
• 2.7-V to 5.5-V Single-Supply Operation
• 20% Resistance Tolerance
• A and B Versions Have Different I2C Addresses
• L Terminal is Internal and Connected toGND
• Operating Temperature: –40°C to +125°C
• Available in Industry Standard SC70Packages
• ESD Performance Tested per JESD 22
– 2000-V Human-Body Model (A114-B, Class II)
Applications of TPL0401B-10DCKR
• Mechanical Potentiometer Replacement
• Adjustable Power Supplies
• Adjustable Gain Amplifiers and OffsetTrimming
• Precision Calibration of SetpointThresholds
• Sensor Trimming and Calibration
Environmental & Export Classifications of TPL0401B-10DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
