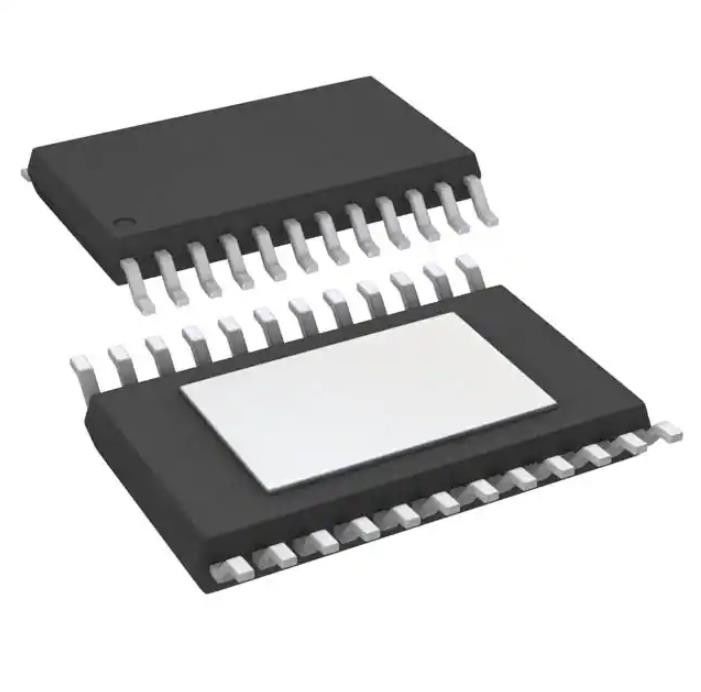

TPA3123D2PWPR dip Ic Sockets Ic Amp Class D Ster 25w 24htssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPA3123D2PWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Depop, Mute, Short-Circuit And Thermal Protection, Shutdown | Product Status: | Active |
|---|---|---|---|
| Type: | Class D | Output Type: | 2-Channel (Stereo) |
| Max Output Power X Channels @ Load: | 25W X 2 @ 4Ohm | Voltage - Supply: | 10V ~ 30V |
| Operating Temperature: | Surface Mount | Product Status Active Type Class D Output Type 2-Channel (Stereo) Max Output Power X Channels @ Load: | -40°C ~ 85°C (TA) |
Product Description
TPA3123D2PWPR Dip Ic Sockets Ic Amp Class D Ster 25w 24htssop
Amplifier IC 2-Channel (Stereo) Class D 24-HTSSOP
Specifications of TPA3123D2PWPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Class D |
| Output Type | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 25W x 2 @ 4Ohm |
| Voltage - Supply | 10V ~ 30V |
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 24-HTSSOP |
| Package / Case | 24-PowerTSSOP (0.173", 4.40mm Width) |
| Base Product Number | TPA3123 |
Features of TPA3123D2PWPR
• 25-W/ch into a 4-Ω Load from a 27-V Supply
• 20-W/ch into a 4-Ω Load from a 24-V Supply
• Operates from 10 V to 30 V
• Efficient Class-D Operation Eliminates Need for Heat Sinks
• Four Selectable, Fixed-Gain Settings
• Internal Oscillator (No External Components Required)
• Single-Ended Analog Inputs
• Thermal and Short-Circuit Protection With Auto Recovery
• Space-Saving Surface-Mount 24-Pin TSSOP Package
• Pin-to-Pin compatible with TPA3120D2
• Advanced Power-Off Pop Reduction
Applications of TPA3123D2PWPR
• Televisions
Environmental & Export Classifications of TPA3123D2PWPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
