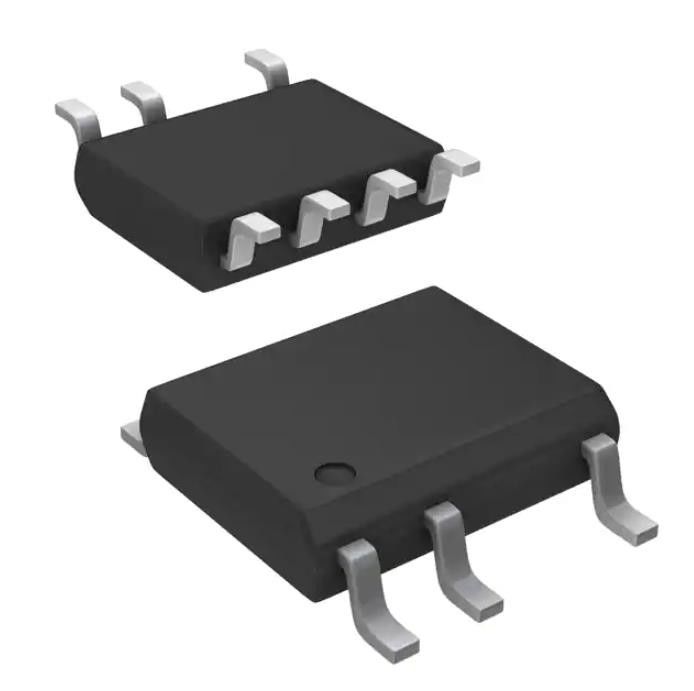

TNY285DG-TLDip Ic Sockets Ic Offline Switch Flyback 8so 596-1605-1-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TNY285DG-TL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Duty Cycle: | 67% | Frequency - Switching: | 124kHz ~ 140kHz |
|---|---|---|---|
| Power (Watts): | 8.5 W | Fault Protection: | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control Features: | EN | Operating Temperature: | -40°C ~ 150°C (TJ) |
| Supplier Device Package: | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Duty Cycle 67% Frequency - Switching 124kHz ~ 140kHz Power (Watts) 8.5 W Fault Protection Current Li: | SO-8C |
Product Description
TNY285DG-TLDip Ic Sockets Ic Offline Switch Flyback 8so 596-1605-1-Nd
Converter Offline Flyback Topology 124kHz ~ 140kHz SO-8C
Specifications of TNY285DG-TLDip
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switches | |
| Mfr | Power Integrations |
| Series | TinySwitch®-4 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 67% |
| Frequency - Switching | 124kHz ~ 140kHz |
| Power (Watts) | 8.5 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | SO-8C |
| Mounting Type | Surface Mount |
| Base Product Number | TNY285 |
Features of TNY285DG-TLDip
• Accurate hysteretic thermal shutdown protection with automatic recovery eliminates need for manual reset
• Auto-restart delivers <3% of maximum powerin short-circuit and open loop fault conditions
• Output overvoltage shutdown with optional Zener
• Fast AC reset with optional UV external resistor
• Very low component count enhances reliability and enables single-sided printed circuit board layout
• High bandwidth provides fast turn-on with no overshoot and excellent transient load response
• Extended creepage between DRAIN and all other pins improves field reliability
Applications of TNY285DG-TLDip
• PC Standby and other auxiliary supplies
• DVD/PVR and other low power set top decoders
• Supplies for appliances, industrial systems, metering, etc
• Chargers/adapters for cell/cordless phones, PDAs, digital cameras, MP3/portable audio, shavers, etc.
Environmental & Export Classifications of TNY285DG-TLDip
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
