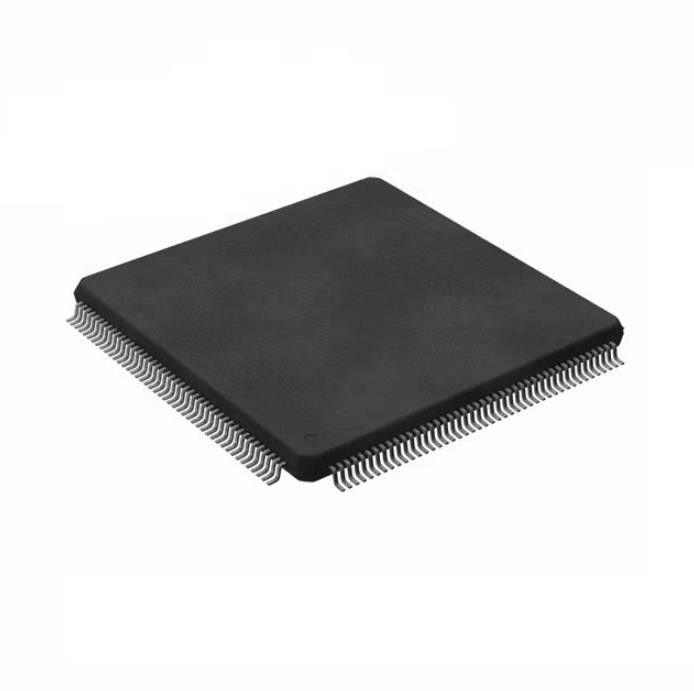

TMS320F2812PGFA Dip Ic Sockets Ic Mcu 32bit 256kb Flash 176lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320F2812PGFA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| RAM Size: | 18K X 16 | Voltage - Supply (Vcc/Vdd): | 1.81V ~ 2V |
|---|---|---|---|
| Data Converters: | A/D 16x12b | Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 85°C (TA) | Mounting Type: | Surface Mount |
| Package / Case: | 176-LQFP | Supplier Device Package: | 176-LQFP (24x24) |
Product Description
TMS320F2812PGFA Dip Ic Sockets Ic Mcu 32bit 256kb Flash 176lqfp
C28x Automotive, AEC-Q100, C2000™ C28x Fixed-Point Microcontroller IC 32-Bit Single-Core 150MHz 256KB (128K x 16) FLASH 176-LQFP (24x24)
Specifications of TMS320F2812PGFA
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, C2000™ C28x Fixed-Point |
| Package | Tray |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | C28x |
| Core Size | 32-Bit Single-Core |
| Speed | 150MHz |
| Connectivity | CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 56 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 18K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.81V ~ 2V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 176-LQFP |
| Supplier Device Package | 176-LQFP (24x24) |
| Base Product Number | TMS320 |
Features of TMS320F2812PGFA
• High-Performance Static CMOS Technology
– 150 MHz (6.67-ns Cycle Time)
– Low-Power (1.8-V Core at 135 MHz,
1.9-V Core at 150 MHz, 3.3-V I/O) Design
• JTAG Boundary Scan Support (1)
• High-Performance 32-Bit CPU ( TMS320C28x™)
– 16 x 16 and 32 x 32 MAC Operations
– 16 x 16 Dual MAC
– Harvard Bus Architecture
– Atomic Operations
– Fast Interrupt Response and Processing
– Unified Memory Programming Model
– 4M Linear Program/Data Address Reach
– Code-Efficient (in C/C++ and Assembly)
– TMS320F24x/LF240x Processor Source Code
Compatible
• On-Chip Memory
– Flash Devices: Up to 128K x 16 Flash
(Four 8K x 16 and Six 16K x 16 Sectors)
– ROM Devices: Up to 128K x 16 ROM
– 1K x 16 OTP ROM
– L0 and L1: 2 Blocks of 4K x 16 Each Single
Access RAM (SARAM)
– H0: 1 Block of 8K x 16 SARAM
– M0 and M1: 2 Blocks of 1K x 16 Each
SARAM
• Boot ROM (4K x 16)
– With Software Boot Modes
– Standard Math Tables
• External Interface (2812)
– Over 1M x 16 Total Memory
– Programmable Wait States
– Programmable Read/Write Strobe Timing
– Three Individual Chip Selects
• Endianness: Little Endian
Applications of TMS320F2812PGFA
• Up to 56 General-Purpose I/O (GPIO) Pins
• Advanced Emulation Features
– Analysis and Breakpoint Functions
– Real-Time Debug via Hardware
• Development Tools Include
– ANSI C/C++ Compiler/Assembler/Linker
– Code Composer Studio™ IDE
– DSP/BIOS™
– JTAG Scan Controllers (1)
• Low-Power Modes and Power Savings
– IDLE, STANDBY, HALT Modes Supported
– Disable Individual Peripheral Clocks
Environmental & Export Classifications of TMS320F2812PGFA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
