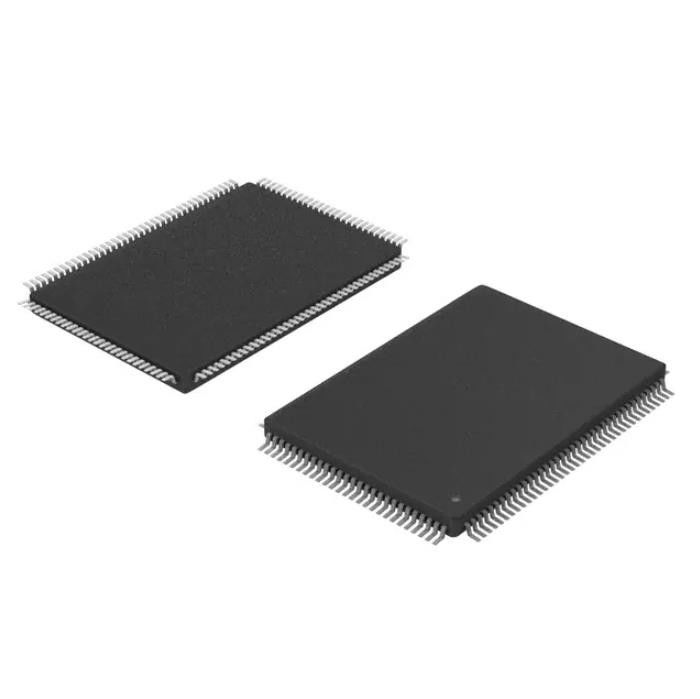

TMS320F2811PBKQ Dip Ic Sockets Ic Mcu 32bit 256kb Flash 128lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320F2811PBKQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| RAM Size: | 18K X 16 | Voltage - Supply (Vcc/Vdd): | 1.81V ~ 2V |
|---|---|---|---|
| Data Converters: | A/D 16x12b | Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 125°C (TA) | Mounting Type: | Surface Mount |
| Package / Case: | 128-LQFP | Supplier Device Package: | 128-LQFP (14x14) |
Product Description
TMS320F2811PBKQ Dip Ic Sockets Ic Mcu 32bit 256kb Flash 128lqfp
C28x Automotive, AEC-Q100, C2000™ C28x Fixed-Point Microcontroller IC 32-Bit Single-Core 150MHz 256KB (128K x 16) FLASH 128-LQFP (14x14)
Specifications of TMS320F2811PBKQ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, C2000™ C28x Fixed-Point |
| Package | Tray |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | C28x |
| Core Size | 32-Bit Single-Core |
| Speed | 150MHz |
| Connectivity | CANbus, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 56 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 18K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.81V ~ 2V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 128-LQFP |
| Supplier Device Package | 128-LQFP (14x14) |
| Base Product Number | TMS320 |
Features of TMS320F2811PBKQ
• High-performance static CMOS technology
– 150 MHz (6.67-ns cycle time)
– Low-power (1.8-V core at 135 MHz, 1.9-V core at 150 MHz, 3.3-V I/O) design
• JTAG boundary scan support
– IEEE Standard 1149.1-1990 IEEE Standard Test Access Port and Boundary-Scan Architecture
• Boot ROM (4K × 16)
– With software boot modes
– Standard math tables
• External interface (F2812)
– Over 1M × 16 total memory
– Programmable wait states
– Programmable read/write strobe timing
– Three individual chip selects
• Endianness: Little endian
• Clock and system control
– On-chip oscillator
– Watchdog timer module
Applications of TMS320F2811PBKQ
• Three external interrupts
• Peripheral Interrupt Expansion (PIE) block that supports 45 peripheral interrupts
• Three 32-bit CPU timers
Environmental & Export Classifications of TMS320F2811PBKQ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
