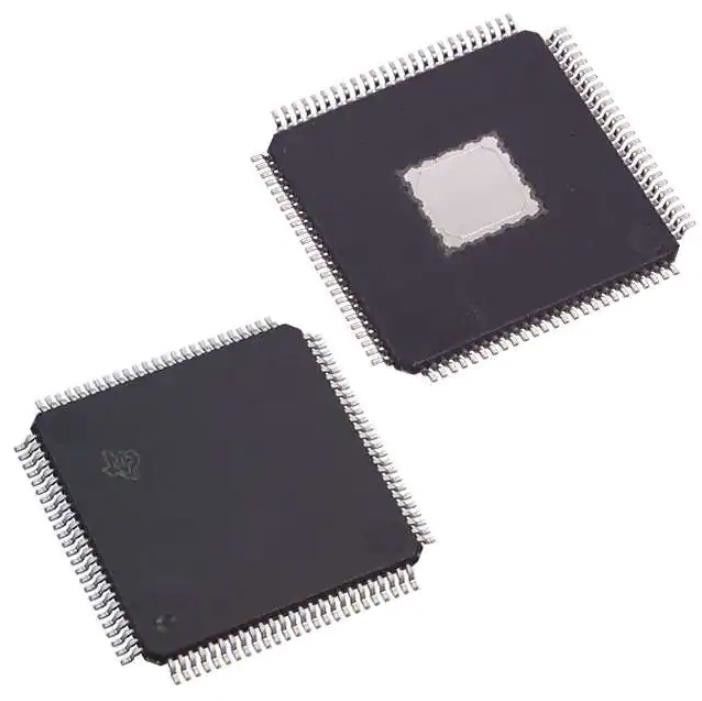

TMS320F28075PZPQ Dip Ic Sockets Ic Mcu 32bit 512kb Flsh 100htqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320F28075PZPQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| RAM Size: | 50K X 16 | Voltage - Supply (Vcc/Vdd): | 1.14V ~ 3.47V |
|---|---|---|---|
| Data Converters: | A/D 14x12b; D/A 3x12b | Oscillator Type: | External |
| Operating Temperature: | -40°C ~ 125°C (TA) | Mounting Type: | Surface Mount |
| Package / Case: | 100-TQFP Exposed Pad | Supplier Device Package: | 100-HTQFP (14x14) |
Product Description
TMS320F28075PZPQ Dip Ic Sockets Ic Mcu 32bit 512kb Flsh 100htqfp
C28x Automotive, AEC-Q100, C2000™ C28x Piccolo™, Functional Safety (FuSa) Microcontroller IC 32-Bit Single-Core 120MHz 512KB (256K x 16) FLASH 100-HTQFP (14x14)
Specifications of TMS320F28075PZPQ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, C2000™ C28x Piccolo™, Functional Safety (FuSa) |
| Package | Bulk |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | C28x |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, I²C, McBSP, SCI, SPI, UART/USART, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 41 |
| Program Memory Size | 512KB (256K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 50K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.47V |
| Data Converters | A/D 14x12b; D/A 3x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-TQFP Exposed Pad |
| Supplier Device Package | 100-HTQFP (14x14) |
| Base Product Number | TMS320 |
Features of TMS320F28075PZPQ
• TMS320C28x 32-bit CPU
– 120 MHz
– IEEE 754 single-precision Floating-Point Unit (FPU)
– Trigonometric Math Unit (TMU)
• Programmable Control Law Accelerator (CLA)
– 120 MHz
– IEEE 754 single-precision floating-point instructions
– Executes code independently of main CPU
• On-chip memory
– 512KB (256KW) of flash (ECC-protected)
– 100KB (50KW) of RAM (ECC-protected or parity-protected)
– Dual-zone security supporting third-party development
– Unique identification number
• Clock and system control
– Two internal zero-pin 10-MHz oscillators
– On-chip crystal oscillator
– Windowed watchdog timer module
– Missing clock detection circuitry
• 3.3-V I/O with available internal voltage regulator for 1.2-V core supply
Applications of TMS320F28075PZPQ
• Single Sample-and-Hold (S/H) on each ADC
• Standard SDFM data filtering
• Comparator filter for fast action for out of range
• High resolution on both A and B channels of 8 PWM modules
Environmental & Export Classifications of TMS320F28075PZPQ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
