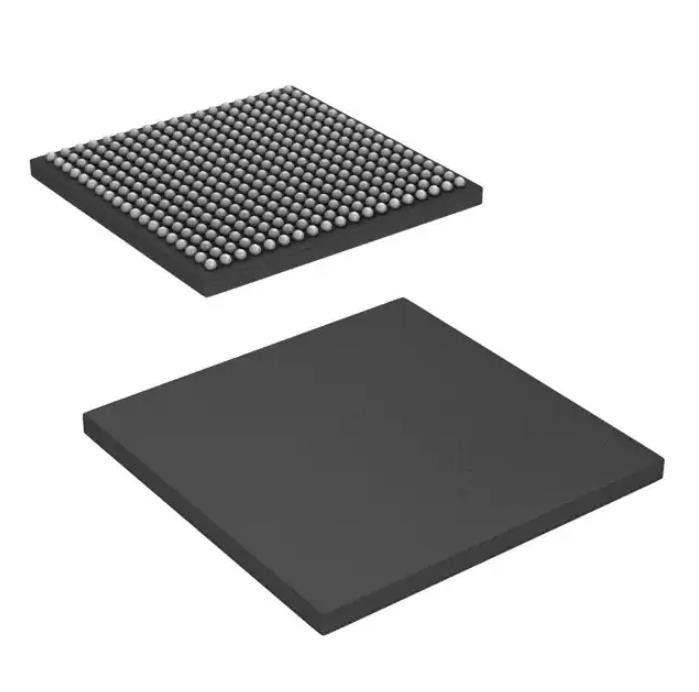

TMS320C6748BZWT4 Dip Ic Sockets Tms320c6748bzwt4 296-29528-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320C6748BZWT4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Clock Rate: | 456MHz | Non-Volatile Memory: | External |
|---|---|---|---|
| On-Chip RAM: | 448kB | Voltage - I/O: | 1.8V, 3.3V |
| Voltage - Core: | 1.30V | Operating Temperature: | 0°C ~ 90°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 361-LFBGA |
Product Description
TMS320C6748BZWT4 Dip Ic Sockets Tms320c6748bzwt4 296-29528-Nd
IC DSP FIX/FLOAT POINT 361NFBGA
Specifications of TMS320C6748BZWT4
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| DSP (Digital Signal Processors) | |
| Mfr | Texas Instruments |
| Series | TMS320C674x |
| Package | Tray |
| Product Status | Obsolete |
| Type | Fixed/Floating Point |
| Interface | EBI/EMI, Ethernet MAC, Host Interface, I²C, McASP, SPI, UART, USB |
| Clock Rate | 456MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 448kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.30V |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 361-LFBGA |
| Supplier Device Package | 361-NFBGA (16x16) |
| Base Product Number | TMS320 |
Features of TMS320C6748BZWT4
• 375- and 456-MHz C674x Fixed- and FloatingPoint VLIW DSP
• C674x Instruction Set Features
– Superset of the C67x+ and C64x+ ISAs
– Up to 3648 MIPS and 2746 MFLOPS
– Byte-Addressable (8-, 16-, 32-, and 64-Bit Data)
– 8-Bit Overflow Protection
– Bit-Field Extract, Set, Clear
– Normalization, Saturation, Bit-Counting
– Compact 16-Bit Instructions
• C674x Two-Level Cache Memory Architecture
– 32KB of L1P Program RAM/Cache
– 32KB of L1D Data RAM/Cache
– 256KB of L2 Unified Mapped RAM/Cache
– Flexible RAM/Cache Partition (L1 and L2)
• Enhanced Direct Memory Access Controller 3
(EDMA3):
– 2 Channel Controllers
– 3 Transfer Controllers
– 64 Independent DMA Channels
– 16 Quick DMA Channels
– Programmable Transfer Burst Size
• TMS320C674x Floating-Point VLIW DSP Core
– Load-Store Architecture With Nonaligned
Support
– 64 General-Purpose Registers (32-Bit)
– Six ALU (32- and 40-Bit) Functional Units
– Supports 32-Bit Integer, SP (IEEE Single
Precision/32-Bit) and DP (IEEE Double
Precision/64-Bit) Floating Point
– Supports up to Four SP Additions Per Clock, Four DP Additions Every Two Clocks
– Supports up to Two Floating-Point (SP or DP) Reciprocal Approximation (RCPxP) and Square-Root Reciprocal Approximation
(RSQRxP) Operations Per Cycle
– Two Multiply Functional Units:
– Mixed-Precision IEEE Floating-Point Multiply
Supported up to:
– 2 SP × SP → SP Per Clock
– 2 SP × SP → DP Every Two Clocks
Applications of TMS320C6748BZWT4
• Currency Inspection
• Biometric Identification
• Machine Vision (Low-End)
Environmental & Export Classifications of TMS320C6748BZWT4
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
