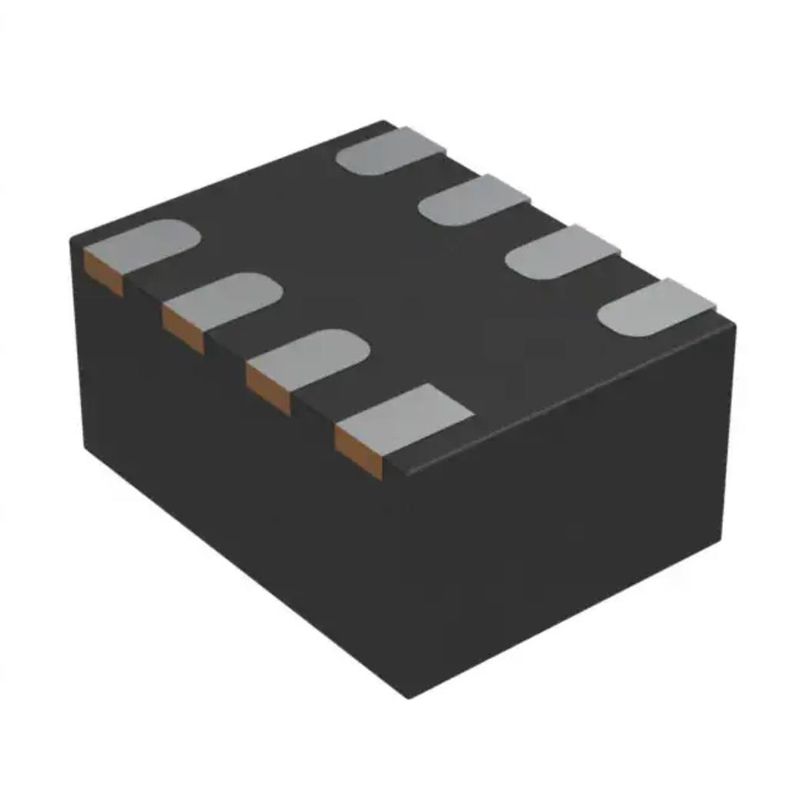

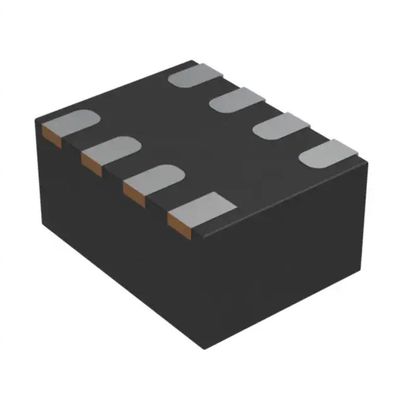

TPS62840DLCR Dip Ic Sockets Ultra Low Iq Buck Converter 296-Tps62840dlcrdkr-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62840DLCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 750mA | Frequency - Switching: | 1.8MHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 8-VFDFN |
| Supplier Device Package: | 8-VSON-HR (2x1.5) | Base Product Number: | TPS62840 |
Product Description
TPS62840DLCR Dip Ic Sockets Ultra Low Iq Buck Converter 296-Tps62840dlcrdkr-Nd
Buck Switching Regulator IC Positive Adjustable 1.8V 1 Output 750mA 8-VFDFN
Specifications of TPS62840DLCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | 3.3V |
| Current - Output | 750mA |
| Frequency - Switching | 1.8MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN |
| Supplier Device Package | 8-VSON-HR (2x1.5) |
| Base Product Number | TPS62840 |
Features of TPS62840DLCR
• 60-nA operating quiescent current
• 100% duty-cycle mode with 120-nA IQ
• Input voltage range VIN from 1.8 V to 6.5 V
• Output current up to 750mA
• RF friendly DCS-Control™
• 80% efficiency at 1 µA IOUT (3.6 VIN to 1.8 VOUT)
• 16 selectable output voltages via VSET pin
• Auto transition PFM/PWM or forced-PWM mode
• Selectable forced PWM and STOP modes
• Output discharge function
• 25-nA shutdown current
• SON-8, WCSP-6 and thermally enhanced HVSSOP-8 packages
Applications of TPS62840DLCR
• Smart meters, smart thermostats
• Asset tracking devices
• Wearable electronics
• Medical sensor patches and patient monitors
• Industrial IoT (smart sensors) / NB-IoT
• Test and measurement
• ATEX / intrinsic safety
Environmental & Export Classifications of TPS62840DLCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
