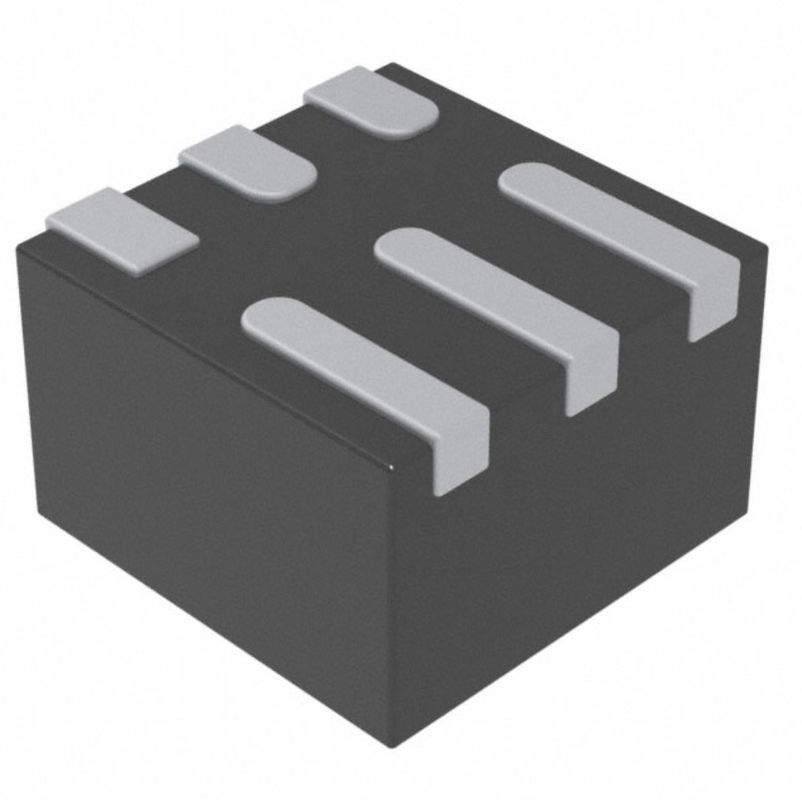

TPS62826DMQR Dip Ic Sockets Ic Reg Buck Adjustable 3a 6vson
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62826DMQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 3A | Frequency - Switching: | 2.2MHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 6-VFDFN |
| Supplier Device Package: | 6-VSON-HR (1.5x1.5) | Base Product Number: | TPS62826 |
Product Description
TPS62826DMQR Dip Ic Sockets Ic Reg Buck Adjustable 3a 6vson
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 6-VFDFN
Specifications of TPS62826DMQR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.4V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 4V |
| Current - Output | 3A |
| Frequency - Switching | 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VFDFN |
| Supplier Device Package | 6-VSON-HR (1.5x1.5) |
| Base Product Number | TPS62826 |
Features of TPS62826DMQR
• Available as an integrated-inductor power module: TPSM82821 and TPSM82822
• DCS-Control™ topology
• 1% feedback or output voltage accuracy (full temperature range)
• Up to 97% efficiency
• 26-mΩ and 25-mΩ internal power MOSFETs
• 2.4-V to 5.5-V input voltage range
• 4-μA operating quiescent current
• 2.2-MHz switching frequency
• Adjustable output voltage from 0.6 V to 4 V
• Power save mode for light load efficiency
• 100% duty cycle for lowest dropout
• Active output discharge
• Power good output
• Thermal shutdown protection
• Hiccup short-circuit protection
• A forced-PWM version forCCM operation
• Create a custom design using the TPS6282x with the WEBENCH® Power Designer
Applications of TPS62826DMQR
• Solid state drive
• Portable electronics
• Analog security and IP network cameras
• Industrial PC
• Multifunction printers
• Generic point of load
Environmental & Export Classifications of TPS62826DMQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
