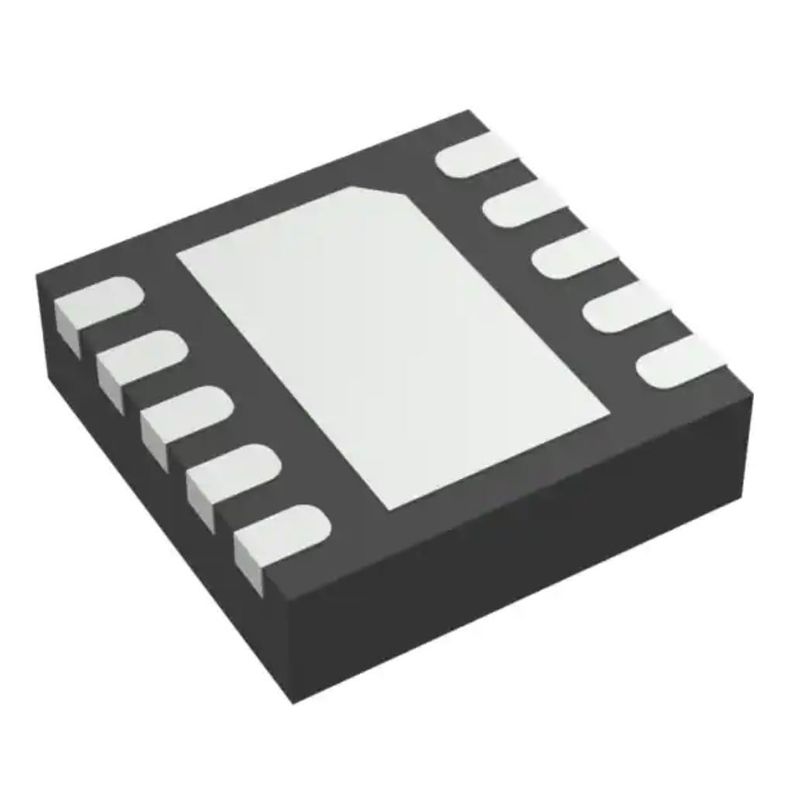

TPS62402QDRCRQ1 Dip Ic Sockets Ic Reg Buck Prog/3.3v Dl 10vson
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62402QDRCRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 400mA, 600mA | Frequency - Switching: | 2.3MHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 10-VFDFN Exposed Pad |
| Supplier Device Package: | 10-VSON (3x3) | Base Product Number: | TPS62402 |
Product Description
TPS62402QDRCRQ1 Dip Ic Sockets Ic Reg Buck Prog/3.3v Dl 10vson
Buck Switching Regulator IC Positive Programmable (Fixed) 1.2V, 1.8V (3.3V) 2 Output 400mA, 600mA 10-VFDFN Exposed Pad
Specifications of TPS62402QDRCRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Programmable (Fixed) |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V, 1.8V (3.3V) |
| Voltage - Output (Max) | - |
| Current - Output | 400mA, 600mA |
| Frequency - Switching | 2.3MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | TPS62402 |
Features of TPS62402QDRCRQ1
• Qualified for automotiveapplications
• AEC-Q100 qualified with the following results:
– Device temperature grade 1: –40°C to 125°C operating junction temperature range
– Device HBM ESD classification level H2
– Device CDM ESD classification level C4B
• High efficiency—up to 95%
• VIN Range from 2.5 V to 6 V
• 2.25-MHz Fixed-frequencyoperation
• Output current 400 mA and 600 mA
• Adjustable output voltage from 0.6 V to VIN
• Pin selectable output voltage supports simple dynamic voltage scaling
• EasyScale™ optional one-pin serial interface
• Power-save mode at lightload currents
• 180° Out-of-phase operation
• Output-voltage accuracy in PWM mode ±1%
• Typical 32-μA quiescentcurrent for both converters
• 100% Duty cycle for lowest dropout
Applications of TPS62402QDRCRQ1
• Infotainment and cluster
• ADAS
Environmental & Export Classifications of TPS62402QDRCRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
