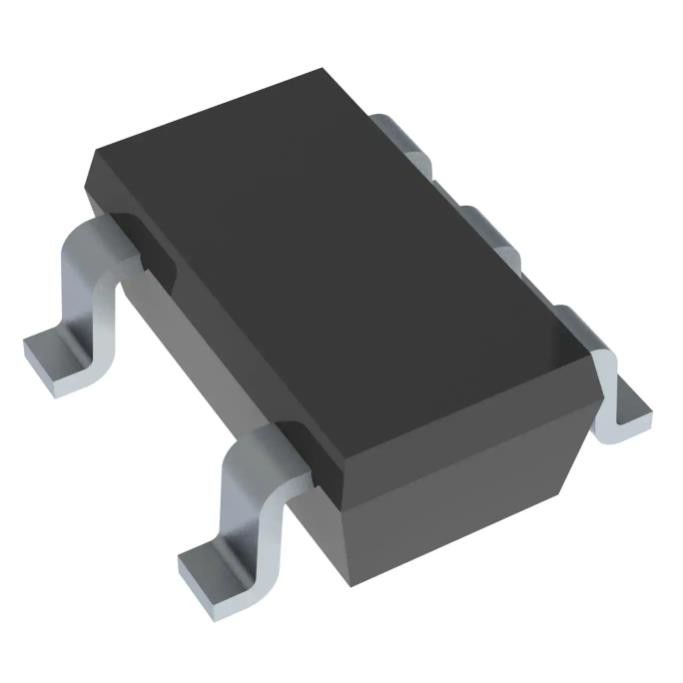

TPS60402QDBVRQ1 Dip Ic Sockets Ic Reg Charg Pump Inv 60ma Sot23
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS60402QDBVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 60mA | Frequency - Switching: | 50kHz |
|---|---|---|---|
| Synchronous Rectifier: | No | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | SC-74A, SOT-753 |
| Supplier Device Package: | SOT-23-5 | Base Product Number: | TPS60402 |
Product Description
TPS60402QDBVRQ1 Dip Ic Sockets Ic Reg Charg Pump Inv 60ma Sot23
Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin, Vin/2 1 Output 60mA SC-74A, SOT-753
Specifications of TPS60402QDBVRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin, Vin/2 |
| Voltage - Output (Max) | - |
| Current - Output | 60mA |
| Frequency - Switching | 50kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS60402 |
Features of TPS60402QDBVRQ1
• Qualified forAutomotive Applications
• AEC-Q100 Test GuidanceWith the FollowingResults:
– Device TemperatureGrade 1: –40°C to+125°C Ambient OperatingTemperatureRange
– Device HBM ESDClassification Level 2
– Device CDM ESDClassification Level C6
• Inverts Input SupplyVoltage
• Up to 60-mA OutputCurrent
• Only Three Small 1-µFCeramic CapacitorsNeeded
• Input Voltage Range From1.8 V to 5.25 V
• PowerSave-Mode forImproved Efficiency at LowOutput Currents (TPS60400-Q1)
• Device Quiescent CurrentTypical: 100 µA
• Integrated ActiveSchottky-Diode for Start-Up IntoLoad
• Small 5-Pin SOT23Package
• Evaluation ModuleAvailable: TPS60400EVM-178
Applications of TPS60402QDBVRQ1
• Automotive Infotainment
• Automotive Cluster
• LCD Displays
• Negative Supply Voltages
Environmental & Export Classifications of TPS60400DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
