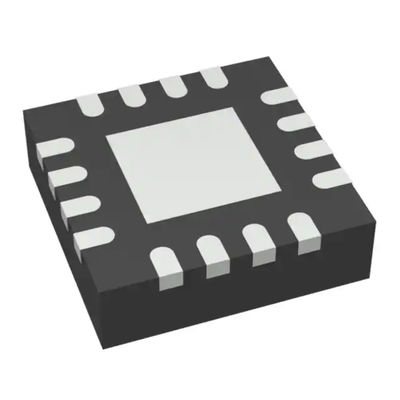

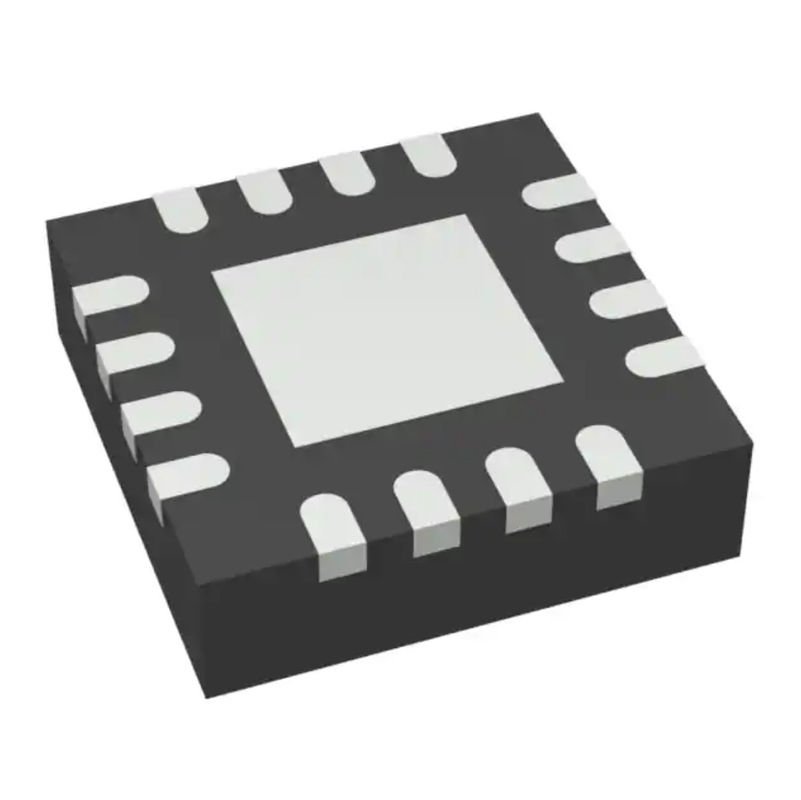

TPS54388QRTERQ1 Dip Ic Sockets Ic Reg Buck Adjustable 3a 16wqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS54388QRTERQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 3A | Frequency - Switching: | 200kHz ~ 2MHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 16-WFQFN Exposed Pad |
| Supplier Device Package: | 16-WQFN (3x3) | Base Product Number: | TPS543 |
Product Description
TPS54388QRTERQ1 Dip Ic Sockets Ic Reg Buck Adjustable 3a 16wqfn
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 16-WFQFN Exposed Pad
Specifications of TPS54388QRTERQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, SWIFT™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.95V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 6V |
| Current - Output | 3A |
| Frequency - Switching | 200kHz ~ 2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| Base Product Number | TPS543 |
Features of TPS54388QRTERQ1
• AEC-Q100-Qualified for Automotive Applications:
– Temperature Grade 1: –40°C to +125°C, TA
• Two 12-mΩ(typical) MOSFETs for High Efficiencyat 3-A Loads
• 200-kHz to 2-MHz Switching Frequency
• 0.8 V ± 1% Voltage Reference Over Temperature(–40°C to +150°C)
• Synchronizesto External Cloc
• Adjustable Slow Start and Sequencing
• UV and OV Power-Good Output
• –40°C to +150°C Operating Junction TemperatureRange
• Thermally Enhanced 3-mm × 3-mm 16-pin WQFN
• Pin Compatible to TPS54418
• Create a Custom Design using the TPS54388-Q1with the WEBENCH®Power Designer
Applications of TPS54388QRTERQ1
• Automotive Head Unit
• Automotive Instrument Cluster
• Automotive ADAS Camera
Environmental & Export Classifications of TPS54388QRTERQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
