TPS54380PWPR Dip Ic Sockets Ic Reg Buck Adj 3a 20htssop 296-26994-1-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS54380PWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Output (Min/Fixed): | 0.891V | Voltage - Output (Max): | 5.4V |
|---|---|---|---|
| Current - Output: | 3A | Frequency - Switching: | 350kHz |
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 20-PowerTSSOP (0.173", 4.40mm Width) |
Product Description
TPS54380PWPR Dip Ic Sockets Ic Reg Buck Adj 3a 20htssop 296-26994-1-Nd
Buck Switching Regulator IC Positive Adjustable 0.891V 1 Output 3A 20-PowerTSSOP (0.173", 4.40mm Width)
Specifications of TPS54380PWPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SWIFT™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.891V |
| Voltage - Output (Max) | 5.4V |
| Current - Output | 3A |
| Frequency - Switching | 350kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| Base Product Number | TPS54380 |
Features of TPS54380PWPR
Power-Up/Down Tracking for Sequencing
60-mΩ MOSFET Switches for High Efficiency at 3-A Continuous Output Source or Sink Current
Wide PWM Frequency: Fixed 350 kHz or Adjustable 280 kHz to 700 kHz
Power Good and Enable
Load Protected by Peak Current Limit and Thermal Shutdown
Integrated Solution Reduces Board Area and Component Count APPLICATIONS
Low-Voltage, High-Density Distributed Power Systems
Point of Load Regulation for High Performance DSPs, FPGAs, ASICs and Microprocessors Requiring Sequencing
Broadband, Networking and Optical Communications Infrastructure
Applications of TPS54380PWPR

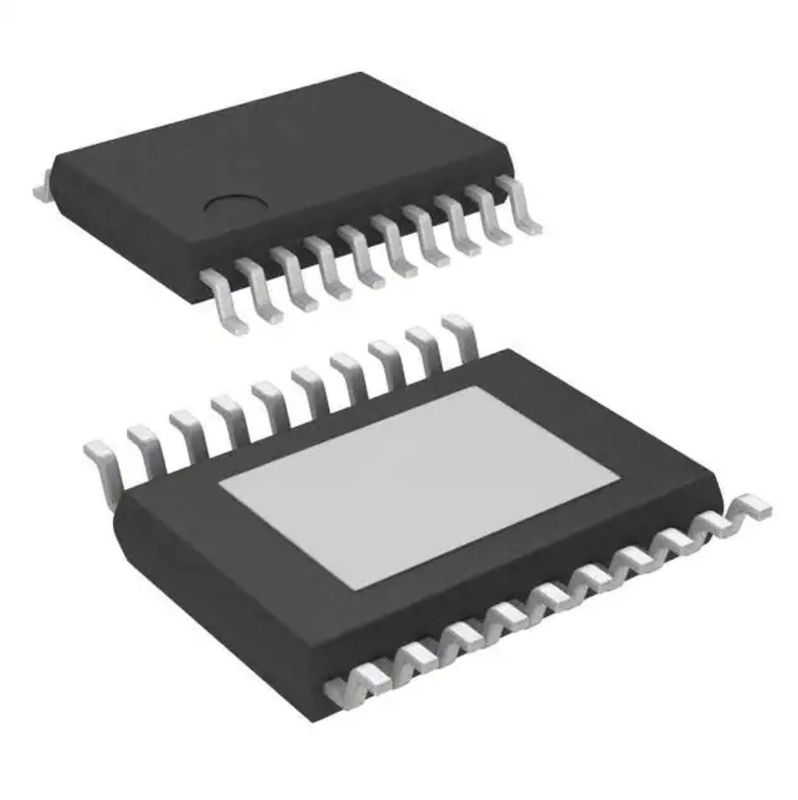

The TPS54380 is available in a thermally enhanced 20-pin TSSOP (PWP) PowerPAD package, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
Environmental & Export Classifications of TPS54380PWPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
