TPS54302DDCR Dip Ic Sockets Ic Reg Buck Adj 3a Tsot23-6 296-46237-6-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS54302DDCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 3A | Frequency - Switching: | 400kHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package: | SOT-23-THIN | Base Product Number: | TPS54302 |
Product Description

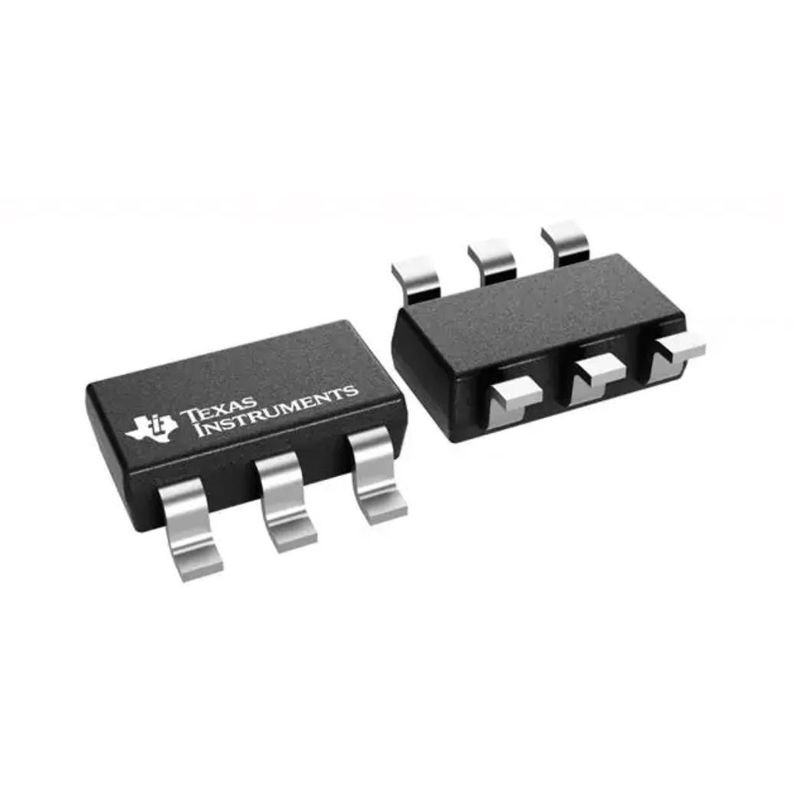

TPS54302DDCR Dip Ic Sockets Ic Reg Buck Adj 3a Tsot23-6 296-46237-6-Nd
Buck Switching Regulator IC Positive Adjustable 0.596V 1 Output 3A SOT-23-6 Thin, TSOT-23-6
Specifications of TPS54302DDCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 0.596V |
| Voltage - Output (Max) | 28V |
| Current - Output | 3A |
| Frequency - Switching | 400kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SOT-23-THIN |
| Base Product Number | TPS54302 |
Features of TPS54302DDCR
• 4.5-V to 28-V wide input voltage range
• Integrated 85-mΩ and 40-mΩ MOSFETs for 3-A, continuous output current
• Low 2-μA shutdown, 45-μA quiescent current
• Internal 5-ms soft start
• Fixed 400-kHz switching frequency
• Frequency spread spectrum to reduce EMI
• Advanced Eco-mode™ pulse skip
• Peak current-mode control
• Internal loop compensation
• Overcurrent protection for both MOSFETs with hiccup mode protection
• Overvoltage protection
• Thermal shutdown
• SOT-23 (6) package
Applications of TPS54302DDCR
• 12-V, 24-V distributed power-bus supply
• Industry application
– White goods
• Consumer application
– Audio
– STB, DTV
– Printer
Environmental & Export Classifications of TPS54302DDCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
