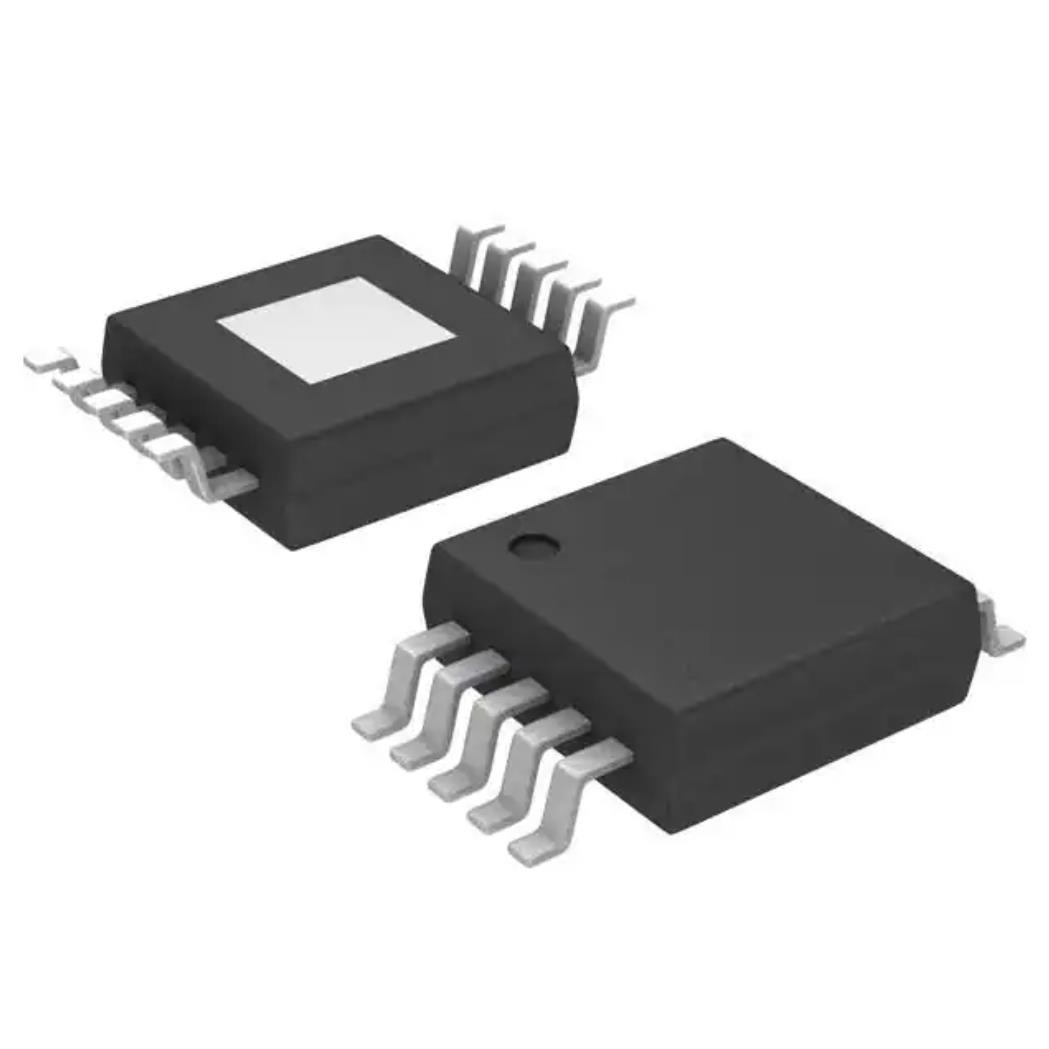

TPS54260DGQR Dip Ic Sockets Ic Reg Buck Adj 2.5a 10msop 296-39415-6-Nd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS54260DGQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 2.5A | Frequency - Switching: | 100kHz ~ 2.5MHz |
|---|---|---|---|
| Synchronous Rectifier: | No | Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package: | 10-HVSSOP | Base Product Number: | TPS54260 |
Product Description
TPS54260DGQR Dip Ic Sockets Ic Reg Buck Adj 2.5a 10msop 296-39415-6-Nd
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2.5A 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Specifications of TPS54260DGQR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 60V |
| Current - Output | 2.5A |
| Frequency - Switching | 100kHz ~ 2.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-HVSSOP |
| Base Product Number | TPS54260 |
Features of TPS54260DGQR
• 3.5-V to 60-V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads With a 0PulseSkipping Eco-mode™
• 138-μA Operating Quiescent Current
• 1.3-μA Shutdown Current
• 100-kHz to 2.5-MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start and Sequencing
• UV and OV Powergood Output
• Adjustable UVLO Voltage and Hysteresis
• 0.8-V Internal Voltage Reference
• 10-Pin MSOP and 10-Pin 3-mm × 3-mm VSON With PowerPAD™ Packages
• Create a Custom Design Using the TPS54260 With WEBENCH® Power Designer
Applications of TPS54260DGQR
• 12-V, 24-V and 48-V Industrial and Commercial Low-Power Systems
• GSM, GPRS Modules in Fleet Management, EMeters, and Security Systems
Environmental & Export Classifications of TPS54260DGQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
