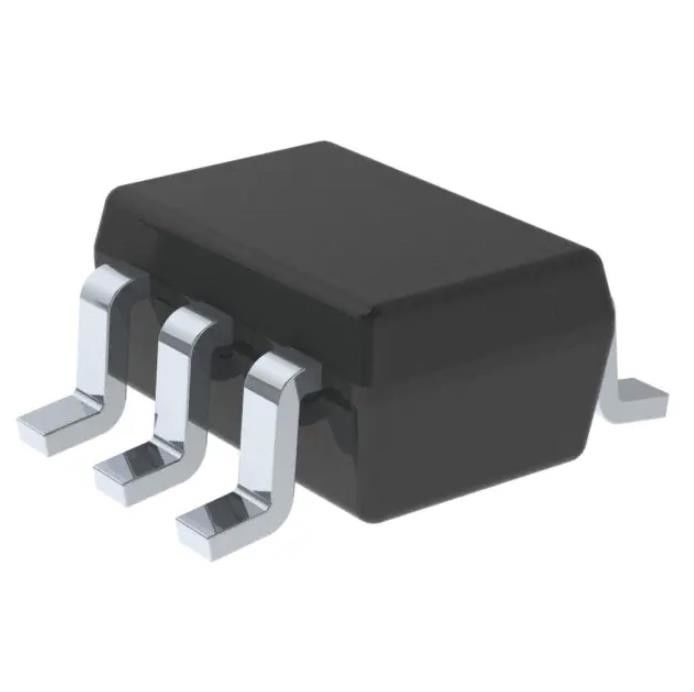

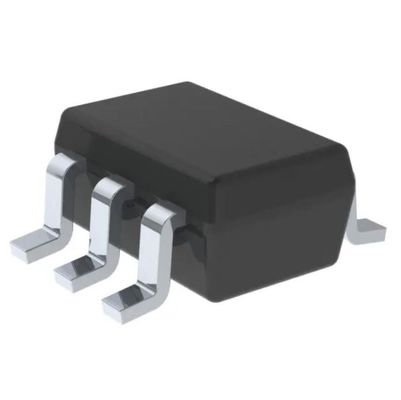

SN74LVC2G34DCKR Current Sense Resistors Ic Buf Non-Invert 5.5v Sc70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC2G34DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Push-Pull | Current - Output High, Low: | 32mA, 32mA |
|---|---|---|---|
| Voltage - Supply: | 1.65V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package: | SC-70-6 | Base Product Number: | 74LVC2G34 |
Product Description
SN74LVC2G34DCKR Current Sense Resistors Ic Buf Non-Invert 5.5v Sc70-6
Buffer, Non-Inverting 2 Element 1 Bit per Element Push-Pull Output SC-70-6
Specifications of SN74LVC2G34DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Push-Pull |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | 74LVC2G34 |
Features of SN74LVC2G34DCKR
• Available in the Texas Instruments NanoFree™ Package
• Supports 5.5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Maximum tpd of 4.1 ns at 3.3 V
• Low Power Consumption, 10-µA Maximum ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25°C
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Can Be Used as a Down Translator to Translate Inputs From a Maximum of 5.5 V Down to the VCC Level
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Applications of SN74LVC2G34DCKR
• AV Receivers
• Audio Docks: Portable
• Blu-ray Player and Home Theaters
• DVD Recorders and Players
• Embedded PCs
• MP3 Players and Recorders (Portable Audio)
• Personal Digital Assistant (PDA)
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid-State Drive (SSD): Client and Enterprise
• TV: LCD/Digital and High-Definition (HDTV)
• Tablets: Enterprise
• Video Analytics: Servers
• Wireless Headsets, Keyboards, and Mice
Environmental & Export Classifications of SN74LVC2G34DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
