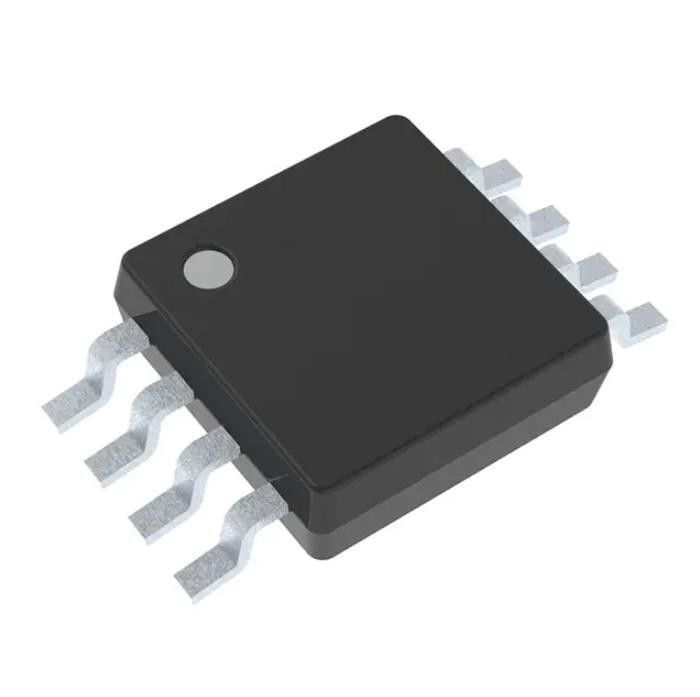

SN74LVC2G241DCUR Current Sense Resistors Ic Buffer Non-Invert 5.5v 8vssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC2G241DCUR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | 3-State | Current - Output High, Low: | 32mA, 32mA |
|---|---|---|---|
| Voltage - Supply: | 1.65V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package: | 8-VSSOP | Base Product Number: | 74LVC2G241 |
Product Description
SN74LVC2G241DCUR Current Sense Resistors Ic Buffer Non-Invert 5.5v 8vssop
Buffer, Non-Inverting 2 Element 1 Bit per Element 3-State Output 8-VSSOP
Specifications of SN74LVC2G241DCUR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | 74LVC2G241 |
Features of SN74LVC2G241DCUR
• Available in the Texas Instruments NanoFree™ Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 4.1 ns at 3.3 V
• Low Power Consumption, 10-µA Maximum ICC
• 24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) 0.8 V at VCC 3.3 V, TA 25°C
• Typical VOHV (Output VOH Undershoot)
Applications of SN74LVC2G241DCUR
• AV Receivers
• Blu-ray Players and Home Theaters
• DVD Recorders and Players
• Desktop or Notebook PCs
• Digital Radio or Internet Radio Players
• Digital Video Cameras (DVC)
Environmental & Export Classifications of SN74LVC2G241DCUR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
