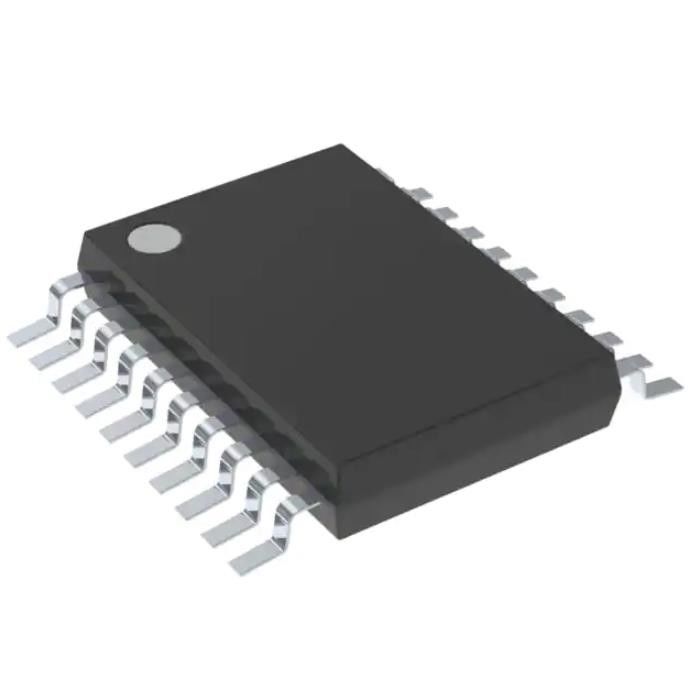

SN74LVC2244ADGVR Current Sense Resistors Ic Buf Non-Invert 3.6v 20tvsop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC2244ADGVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | 3-State | Current - Output High, Low: | 12mA, 12mA |
|---|---|---|---|
| Voltage - Supply: | 1.65V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 20-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 20-TVSOP | Base Product Number: | 74LVC2244 |
Product Description
SN74LVC2244ADGVR Current Sense Resistors Ic Buf Non-Invert 3.6v 20tvsop
Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-TVSOP
Specifications of SN74LVC2244ADGVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TVSOP |
| Base Product Number | 74LVC2244 |
Features of SN74LVC2244ADGVR
• Operates From 1.65 V to 3.6 V
• Wearable Health and Fitness Devices
• Inputs Accept Voltages to 5.5 V
• Typical V 3 Description OLP (Output Ground Bounce)
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
•2000-V Human-Body Model (A114-A)
Applications of SN74LVC2244ADGVR
• Network Switches
• Max tpd of 5.5 ns at 3.3 V
• Servers
• Tests and Measurements
Environmental & Export Classifications of SN74LVC2244ADGVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
