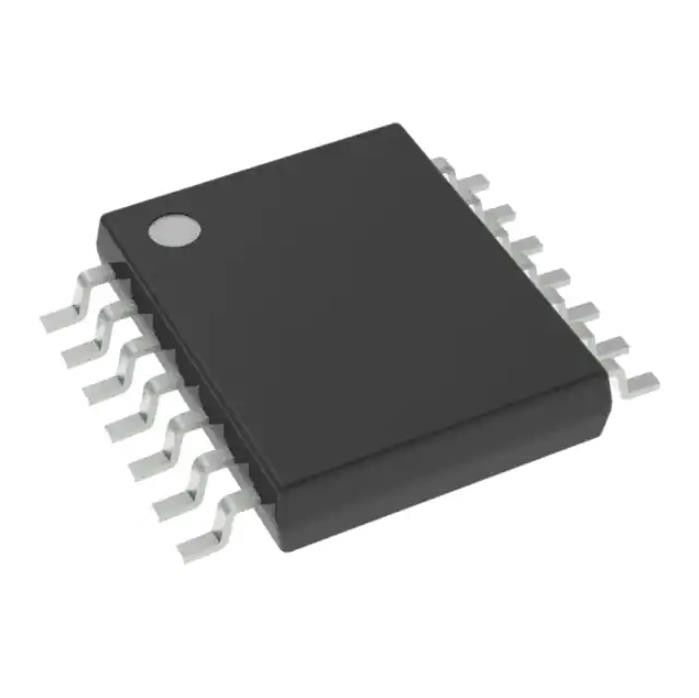

SN74LVC00APWR Current Sense Resistors Ic Gate Nand 4ch 2-Inp 14tssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC00APWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Quiescent (Max): | 1 µA | Current - Output High, Low: | 24mA, 24mA |
|---|---|---|---|
| Input Logic Level - Low: | 0.7V ~ 0.8V | Input Logic Level - High: | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL: | 4.1ns @ 3.3V, 50pF | Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount | Supplier Device Package: | 14-TSSOP |
Product Description
SN74LVC00APWR Current Sense Resistors Ic Gate Nand 4ch 2-Inp 14tssop
NAND Gate IC 4 Channel 14-TSSOP
Specifications of SN74LVC00APWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4.1ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | 74LVC00 |
Features of SN74LVC00APWR
• AV Receivers
• Audio Docks: Portable
• Blu-ray Players and Home Theater
• MP3 Players or Recorder s
• Personal Digital Assistants (PDAs)
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid State Drives (SSDs): Client and Enterprise
Applications of SN74LVC00APWR
• TVs: LCD, Digital, and High-Definition (HDTV)
• Tablets: Enterprise
• Video Analytics: Server
• Wireless Headsets, Keyboards, and Mice
Environmental & Export Classifications of SN74LVC00APWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
