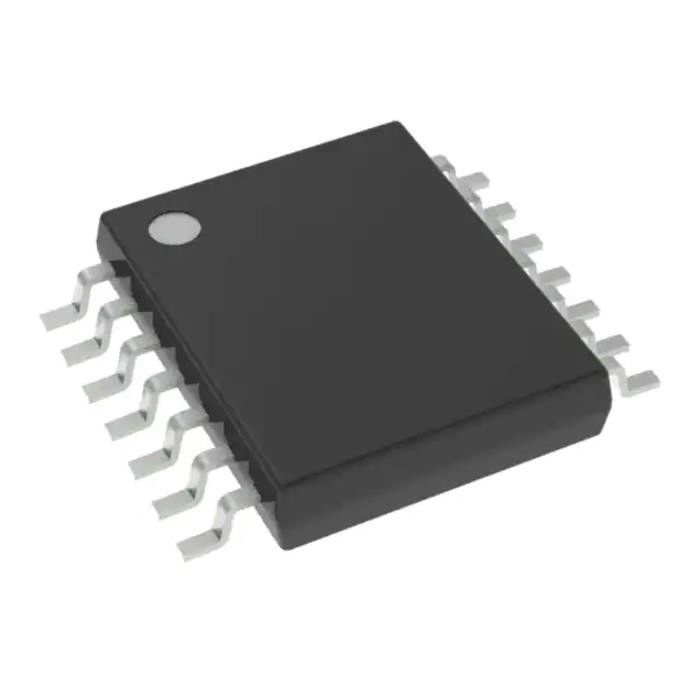

SN74LV14APWR Current Sense Resistors Ic Inverter 6ch 1-Inp 14tssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LV14APWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Schmitt Trigger | Number Of Inputs: | 1 |
|---|---|---|---|
| Voltage - Supply: | 2V ~ 5.5V | Current - Quiescent (Max): | 20 µA |
| Current - Output High, Low: | 12mA, 12mA | Input Logic Level - Low: | 0.75V ~ 1.5V |
| Input Logic Level - High: | 1.75V ~ 3.5V | Max Propagation Delay @ V, Max CL: | 10.6ns @ 5V, 50pF |
Product Description
SN74LV14APWR Current Sense Resistors Ic Inverter 6ch 1-Inp 14tssop
Inverter IC 6 Channel Schmitt Trigger 14-TSSOP
Specifications of SN74LV14APWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74LV |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 20 µA |
| Current - Output High, Low | 12mA, 12mA |
| Input Logic Level - Low | 0.75V ~ 1.5V |
| Input Logic Level - High | 1.75V ~ 3.5V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | 74LV14 |
Features of SN74LV14APWR
• VCC operation of 2 V to 5.5 V
• Max tpd of 10 ns at 5 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
• Support Mixed-Mode Voltage Operation on All Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 250 mA Per JESD 17
Applications of SN74LV14APWR
• Network Switches
• Wearable Health and Fitness Devices
• PDAs
• LCD TVs
• Power Infrastructure
Environmental & Export Classifications of SN74LV14APWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
