SN74AHCT08QDRQ1 Current Sense Resistors Ic Gate And 4ch 2-Inp 14soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AHCT08QDRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply: | 4.5V ~ 5.5V | Current - Quiescent (Max): | 2 µA |
|---|---|---|---|
| Current - Output High, Low: | 8mA, 8mA | Input Logic Level - Low: | 0.8V |
| Input Logic Level - High: | 2V | Max Propagation Delay @ V, Max CL: | 7.9ns @ 5V, 50pF |
| Operating Temperature: | -40°C ~ 125°C | Mounting Type: | Surface Mount |
Product Description
SN74AHCT08QDRQ1 Current Sense Resistors Ic Gate And 4ch 2-Inp 14soic

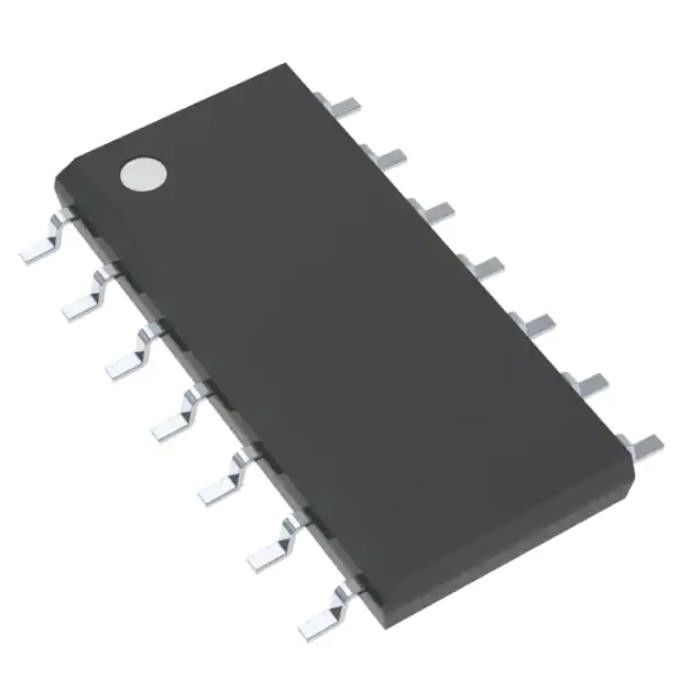

AND Gate IC 4 Channel 14-SOIC
Specifications of SN74AHCT08QDRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, 74AHCT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 7.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74AHCT08 |
Features of SN74AHCT08QDRQ1
• Qualified for automotive applications
• EPIC™ (enhanced-performance implanted CMOS) process
• Inputs are TTL-voltage compatible
• Latch-up performance exceeds 250 mA per JESD 17
• Slow rise and fall time on outputs allow for low-noise outputs
• TTL inputs allow up translation from 3.3 V to 5 V
Applications of SN74AHCT08QDRQ1
• Combine power good signals
• Combine enable signals
• Outputs should not be pulled above VCC
Environmental & Export Classifications of SN74AHCT08QDRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
