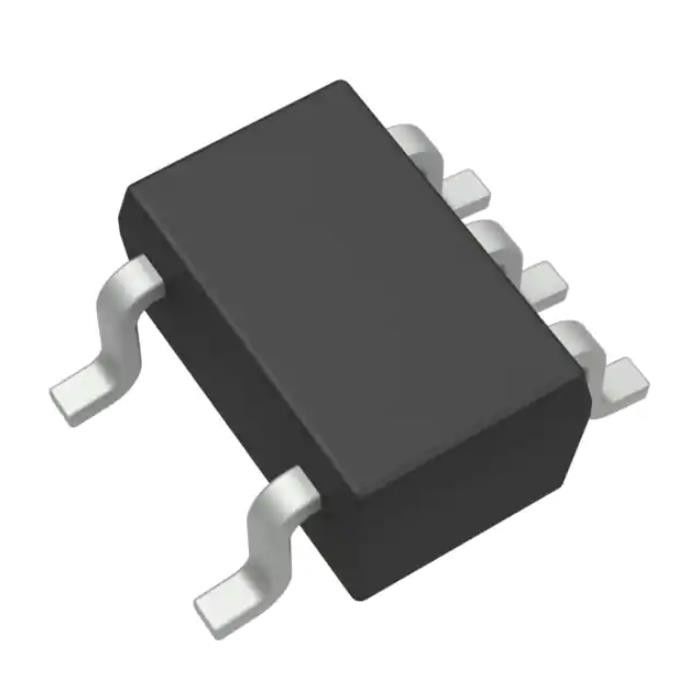

SN74AHC1G126DCKR Current Sense Resistors Ic Buf Non-Invert 5.5v Sc70-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AHC1G126DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | 3-State | Current - Output High, Low: | 8mA, 8mA |
|---|---|---|---|
| Voltage - Supply: | 2V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package: | SC-70-5 | Base Product Number: | 74AHC1G126 |
Product Description
SN74AHC1G126DCKR Current Sense Resistors Ic Buf Non-Invert 5.5v Sc70-5
Buffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output SC-70-5
Specifications of SN74AHC1G126DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74AHC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | 74AHC1G126 |
Features of SN74AHC1G126DCKR
• Operating Range of 2 V to 5.5 V
• Max tpd of 6 ns at 5 V
• Low Power Consumption, 10-µA Max ICC
• 8-mA Output Drive at 5 V
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• Projectors
Applications of SN74AHC1G126DCKR
• Motor Controls
• Patient Monitoring
• Electronic Points of Sale
Environmental & Export Classifications of SN74AHC1G126DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
