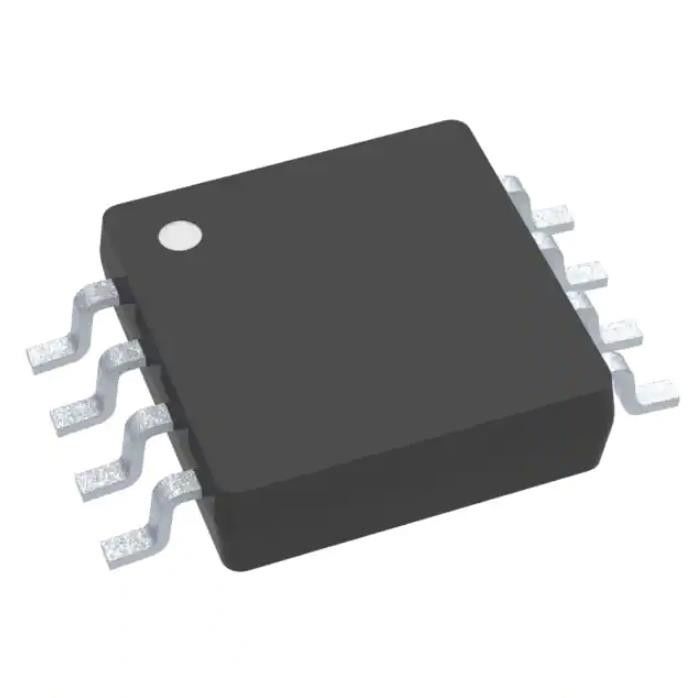

SN65LVDM176DGKR Current Sense Resistors Ic Transceiver Half 1/1 8vssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN65LVDM176DGKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Transceiver |
|---|---|---|---|
| Protocol: | LVDS | Mounting Type: | Surface Mount |
| Duplex: | Half | Data Rate: | 400Mbps |
| Voltage - Supply: | 3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
Product Description
SN65LVDM176DGKR Current Sense Resistors Ic Transceiver Half 1/1 8vssop
1/1 Transceiver Half LVDS 8-VSSOP
Specifications of SN65LVDM176DGKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 1月1日 |
| Duplex | Half |
| Data Rate | 400Mbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | 65LVDM176 |
Features of SN65LVDM176DGKR
• Low-Voltage Differential Driver and Receiver for Half-Duplex Operation
• Designed for Signaling Rates of 400 Mbit/s
• ESD Protection Exceeds 15 kV on Bus Pins
• Operates From a Single 3.3-V Supply
• Low-Voltage Differential Signaling With Typical Output Voltages of 350 mV and a 50-Ω Load
• Valid Output With as Little as 50 mV Input Voltage Difference
• Propagation Delay Times
• Power Dissipation at 200 MHz
Applications of SN65LVDM176DGKR
• LVTTL Levels Are 5-V Tolerant
• Open-Circuit Fail-Safe Receiver
• Surface-Mount Packaging
Environmental & Export Classifications of SN65LVDM176DGKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
