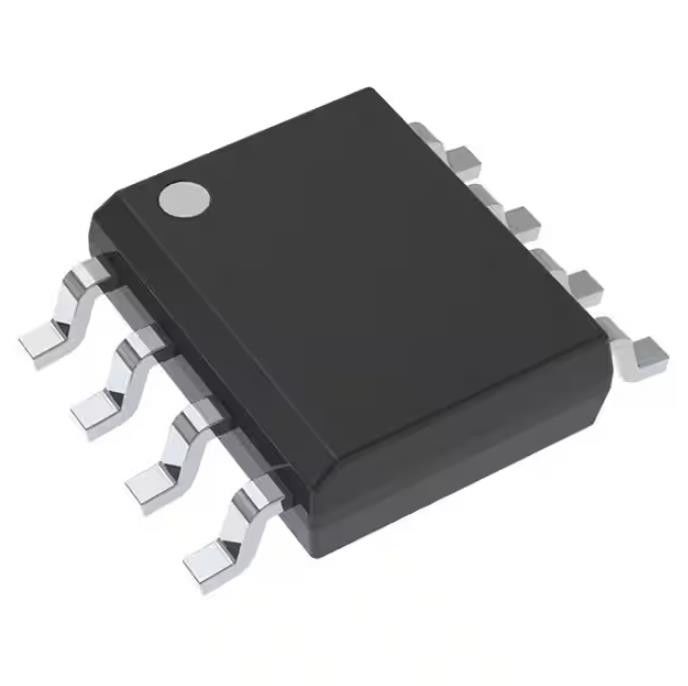

SN65LBC184DR Current Sense Resistors Ic Transceiver Half 1/1 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN65LBC184DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Transceiver |
|---|---|---|---|
| Protocol: | RS422, RS485 | Number Of Drivers/Receivers: | 1/1 |
| Duplex: | Half | Receiver Hysteresis: | 70 MV |
| Data Rate: | 250kbps | Voltage - Supply: | 4.75V ~ 5.25V |
Product Description
SN65LBC184DR Current Sense Resistors Ic Transceiver Half 1/1 8soic
1/1 Transceiver Half RS422, RS485 8-SOIC
Specifications of SN65LBC184DR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 70 mV |
| Data Rate | 250kbps |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | 65LBC184 |
Features of SN65LBC184DR
• Integrated Transient Voltage Suppression
• ESD Protection for Bus Terminals Exceeds:±30 kV IEC 61000-4-2, Contact Discharge ±15 kV IEC 61000-4-2, Air-Gap Discharge
±15 kV EIA/JEDEC Human Body Model
• Circuit Damage Protection of 400-W Peak (Typical) Per IEC 61000-4-5
• Controlled Driver Output-Voltage Slew Rates Allow Longer Cable Stub Lengths
• 250-kbps in Electrically Noisy Environments
• Open-Circuit Fail-Safe Receiver Design
• 1/4 Unit Load Allows for 128 Devices Connected on Bus
• Thermal Shutdown Protection
• Power-Up and Power-Down Glitch Protection
• Each Transceiver Meets or Exceeds the Requirements of TIA/EIA-485 (RS-485) and ISO/IEC 8482:1993(E) Standards
• Low Disabled Supply Current 300 μA Maximum
• Pin Compatible With SN75176
Applications of SN65LBC184DR
• Industrial Networks
• Utility Meters
• Motor Control
Environmental & Export Classifications of SN65LBC184DR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
