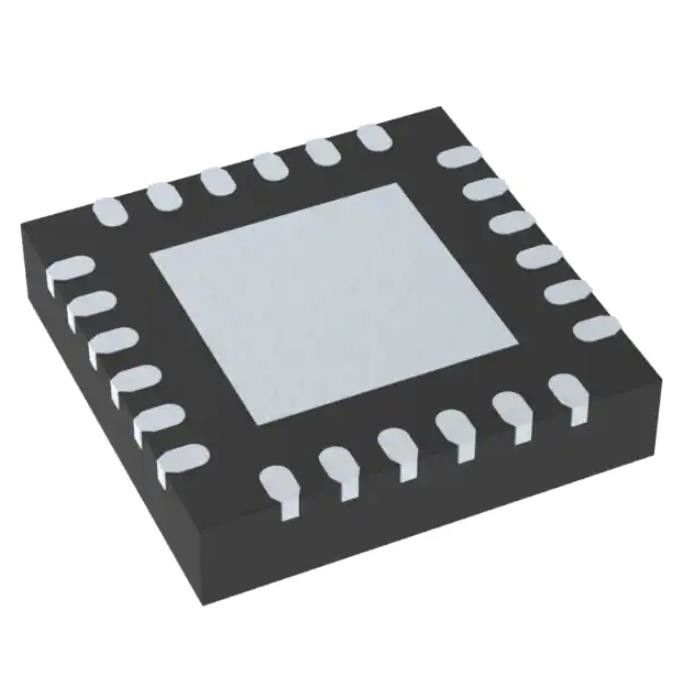

SI5335D-B03965-GM IC 4OUT 24 VFQFN Exposed Pad Surface Mount

• Low power MultiSynth™ technology enables independent, any-frequency synthesis of four frequencies

• Configurable as a clock generator or clock buffer device

• Three independent, user-assignable, pinselectable device configurations

• Highly-configurable output drivers with up to four differential outputs, eight single-ended clock outputs, or a combination of both

• Low phase jitter of 0.7 ps RMS

• Flexible input reference:

• External crystal: 25 or 27 MHz

• CMOS input: 10 to 200 MHz

• SSTL/HSTL input: 10 to 350 MHz

• Differential input: 10 to 350 MHz

• Independently configurable outputs support any frequency or format:

• LVPECL/LVDS/CML: 1 to 350 MHz • HCSL: 1 to 250 MHz

• CMOS: 1 to 200 MHz

• SSTL/HSTL: 1 to 350 MHz

• Independent output voltage per driver:1.5, 1.8, 2.5, or 3.3 V

• Single supply core with excellentPSRR: 1.8, 2.5, 3.3 V

• Up to five user-assignable pin functions simplify system design: SSENB (spread spectrum control), RESET, Master OEB or OEB per pin, and Frequency plan select (FS1, FS0)

• Loss of signal alarm

• PCIe Gen 1/2/3/4 common clock compliant

• PCIe Gen 3 SRNS Compliant

• Two selectable loop bandwidth settings: 1.6 MHz or 475 kHz

• Easy to customize with web-based utility

• Small size: 4 x 4 mm, 24-QFN

• Low power (core):

• 45 mA (PLL mode)

• 12 mA (Buffer mode)

• Wide temperature range: –40 to +85 °C
