SI5334C-B07037-GM Current Sense Resistors 4-Output, Any Frequency(<200mhz)

• Low-power MultiSynth technology enables independent, any-frequency synthesis on four differential output drivers

• Highly-configurable output drivers support up to four differential outputs or eight single-ended clock outputs or a combination of both

• Low phase jitter: 0.7 ps RMS typ

• High-precision synthesis allows true 0 ppm frequency accuracy on all outputs

• Flexible input reference

• External crystal: 8 to 30 MHz

• CMOS input: 5 to 200 MHz

• SSTL/HSTL input: 5 to 350 MHz

• Differential input: 5 to 710 MHz

• Independently-configurable outputs support any frequency or format

• LVPECL/LVDS: 0.16 to 710 MHz

• HCSL: 0.16 to 250 MHz

• CMOS: 0.16 to 200 MHz

• SSTL/HSTL: 0.16 to 350 MHz

• Independent output voltage per driver

• 1.5, 1.8, 2.5, or 3.3 V

• Independent core supply voltage

• 1.8, 2.5, or 3.3 V

• Frequency increment/decrement feature enables glitchless frequency adjustments in 1 ppm steps

• Phase adjustment on each of the output drivers with <20 ps steps

• SSC on any or all outputs that is compliant to PCI Express

• Optional external feedback mode allows zero-delay implementation

• Loss-of-lock and loss-of-signal alarm

• Simple pin control

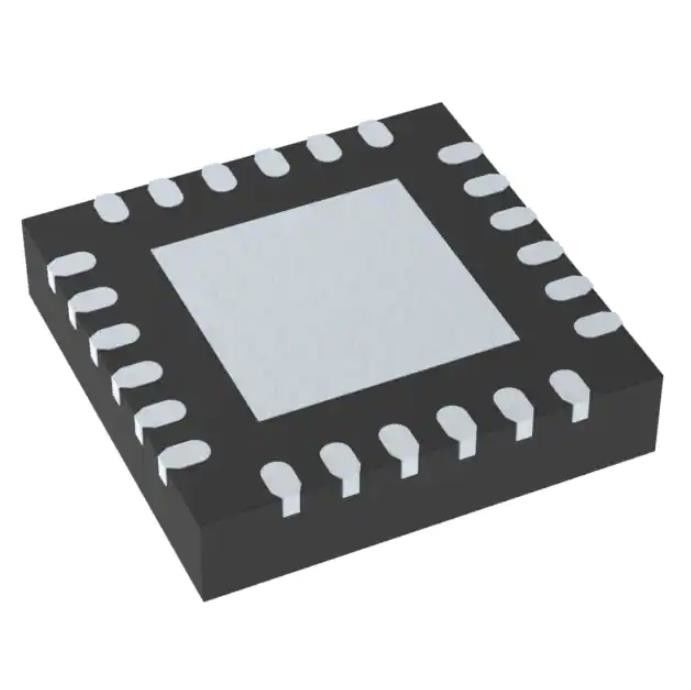

• Small size: 4x4 mm, 24-QFN

• Low power: 45 mA core supply typ

• Wide temperature range:–40 to +85 °C

• Contact Skyworks Solutions forcustom versions
