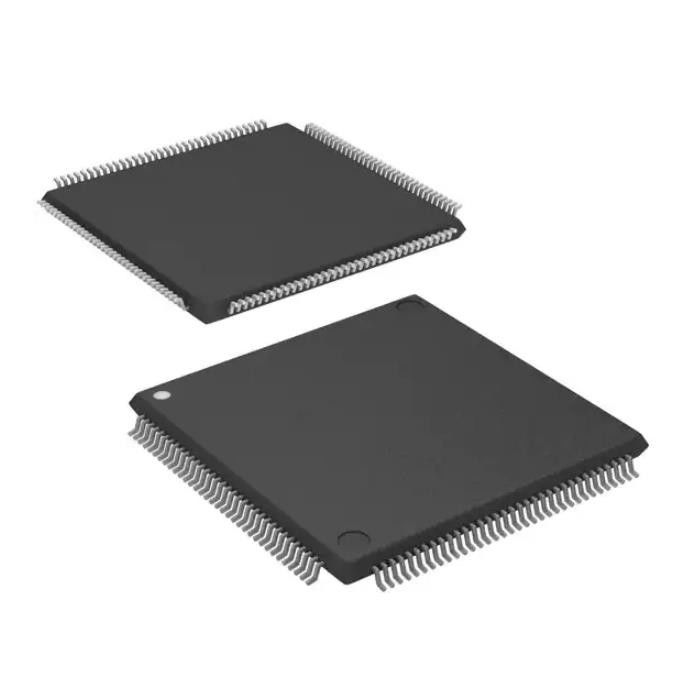

SAF-XC161CJ-16F20F BB Current Sense Resistors Ic Mcu 16bit 128kb Flash 144tqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SAF-XC161CJ-16F20F BB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Infineon Technologies | Series: | XC16x |
|---|---|---|---|
| Package: | Tape & Reel (TR) | Product Status: | Discontinued At Digi-Key |
| Digi-Key Programmable: | Not Verified | Digi-Key Programmable Core Processor: | C166SV2 |
| Core Size: | 16-Bit | Speed: | 20MHz |
Product Description
SAF-XC161CJ-16F20F BB Current Sense Resistors Ic Mcu 16bit 128kb Flash 144tqfp
C166SV2 XC16x Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH PG-TQFP-144-7
Specifications of SAF-XC161CJ-16F20F BB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Infineon Technologies |
| Series | XC16x |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at Digi-Key |
| Digi-Key Programmable | Not Verified |
| Core Processor | C166SV2 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CANbus, EBI/EMI, I²C, SLDM, SPI, UART/USART |
| Peripherals | PWM, WDT |
| Number of I/O | 99 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 2.7V |
| Data Converters | A/D 12x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | PG-TQFP-144-7 |
| Base Product Number | SAF-XC161 |
Features of SAF-XC161CJ-16F20F BB
• High Performance 16-bit CPU with 5-Stage Pipeline
– 25 ns Instruction Cycle Time at 40 MHz CPU Clock (Single-Cycle Execution)
– 1-Cycle Multiplication (16 × 16 bit), Background Division (32 / 16 bit) in 21 Cycles
– 1-Cycle Multiply-and-Accumulate (MAC) Instructions
– Enhanced Boolean Bit Manipulation Facilities
– Zero-Cycle Jump Execution
– Additional Instructions to Support HLL and Operating Systems
– Register-Based Design with Multiple Variable Register Banks
– Fast Context Switching Support with Two Additional Local Register Banks
– 16 Mbytes Total Linear Address Space for Code and Data
– 1024 Bytes On-Chip Special Function Register Area (C166Family Compatible)
• 16-Priority-Level Interrupt System with 73 Sources, Sample-Rate down to 50 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC), 24-Bit Pointers Cover Total Address Space
• Clock Generation via on-chip PLL (factors 1:0.15 … 1:10), or via Prescaler (factors 1:1 … 60:1)
• On-Chip Memory Modules
– 2 Kbytes On-Chip Dual-Port RAM (DPRAM)
– 4 Kbytes On-Chip Data SRAM (DSRAM)
– 2 Kbytes On-Chip Program/Data SRAM (PSRAM)
– 128 Kbytes On-Chip Program Memory (Flash Memory)
• On-Chip Peripheral Modules
– 12-Channel A/D Converter with Programmable Resolution
(10-bit or 8-bit) and Conversion Time (down to 2.55 µs or 2.15 µs)
– Two 16-Channel General Purpose Capture/Compare Units
(32 Input/Output Pins)
– Multi-Functional General Purpose Timer Unit with 5 Timers
– Two Synchronous/Asynchronous Serial Channels (USARTs)
– Two High-Speed-Synchronous Serial Channels
– On-Chip TwinCAN Interface (Rev. 2.0B active) with 32 Message Objects
(Full CAN/Basic CAN) on Two CAN Nodes, and Gateway Functionality
– Serial Data Link Module (SDLM), compliant with J1850, supporting Class 2
– IIC Bus Interface (10-bit addressing, 400 kbit/s) with 3 Channels (multiplexed)
– On-Chip Real Time Clock, Driven by Dedicated Oscillator
• Idle, Sleep, and Power Down Modes with Flexible Power Management
• Programmable Watchdog Timer and Oscillator Watchdog
Applications of SAF-XC161CJ-16F20F BB
The ordering code for Infineon microcontrollers provides an exact reference to the required product. This ordering code identifies:
• the derivative itself, i.e. its function set, the temperature range, and the supply voltage
• the package and the type of delivery.
For the available ordering codes for the XC161 please refer to your responsible sales representative or your local distributor.
Note: The ordering codes for Mask-ROM versions are definedfor each product after verification of the respective ROM code. This document describes several derivatives of the XC161
group. Table 1 enumerates these derivatives and summarizes the differences. As this document refers to all of these derivatives, some descriptions may not apply to a specificproduct.
For simplicity all versions are referred to by the term XC161 throughout this document.
Environmental & Export Classifications of SAF-XC161CJ-16F20F BB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
