S9S12XS256J0MALR IC MCU 16BIT 256KB FLASH 112LQFP Microcontrollers
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S9S12XS256J0MALR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Core Processor: | HCS12X | Core Size: | 16-Bit |
| Speed: | 40MHz | Connectivity: | CANbus, SCI, SPI |
| Peripherals: | LVD, POR, PWM, WDT | Number Of I/O: | 91 |
| High Light: | S9S12XS256J0MALR IC,IC MCU 16BIT 256KB FLASH,MCU 16BIT 256KB FLASH 112LQFP |
||
Product Description

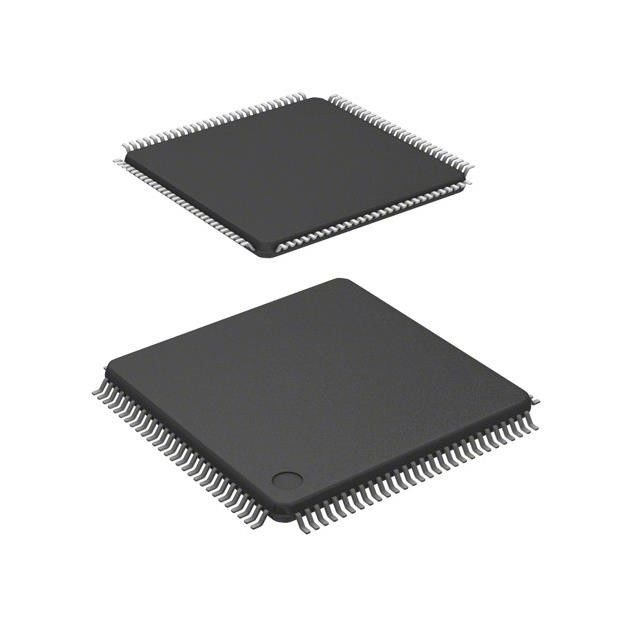

S9S12XS256J0MALR Current Sense Resistors Ic Mcu 16bit 256kb Flash 112lqfp
HCS12X HCS12X Microcontroller IC 16-Bit 40MHz 256KB (256K x 8) FLASH 112-LQFP (20x20)
Specifications of S9S12XS256J0MALR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | HCS12X |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 40MHz |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 91 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 112-LQFP |
| Supplier Device Package | 112-LQFP (20x20) |
| Base Product Number | S9S12 |
Features of S9S12XS256J0MALR
The XS family of devices offers pin-compatible packaged devices to assist with system development and accommodate expansion of the application. The S12XS family devices are offered in the following package options:
• 112-pin LQFP
• 80-pin QFP
• 64-pin LQFP
Applications of S9S12XS256J0MALR
PE7 is a general-purpose input or output pin. ECLKX2 is a clock output of twice the internal bus frequency. The XCLKS is an input signal which controls whether a crystal in combination with the internal loop controlled Pierce oscillator is used or whether full swing Pierce oscillator/external clock circuitry is used (refer to Section 1.10 Oscillator Configuration). An internal pull-up is enabled during reset.
