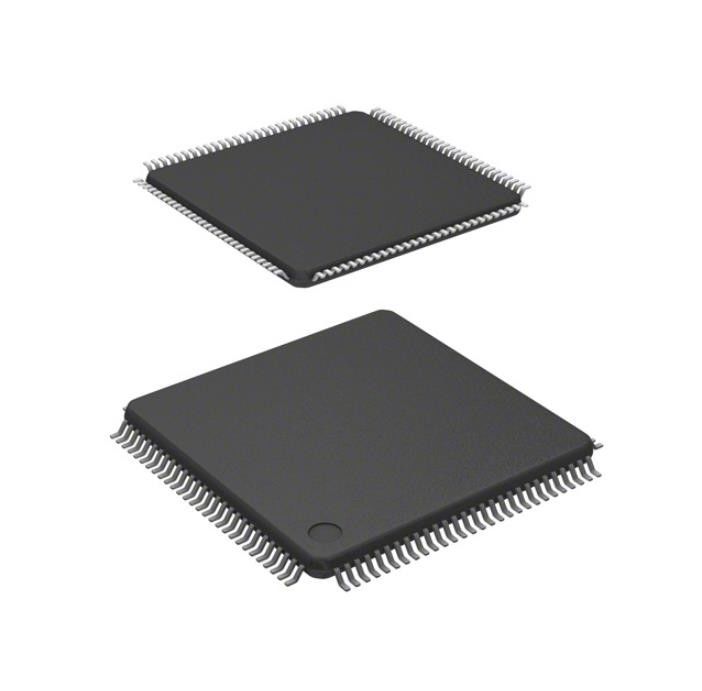

S9S12XS128J1MALR Current Sense Resistors Ic Mcu 16bit 128kb Flash 112lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S9S12XS128J1MALR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | HCS12X | Package: | Tape & Reel (TR) |
|---|---|---|---|
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
| Core Processor: | HCS12X | Core Size: | 16-Bit |
| Speed: | 40MHz | Connectivity: | CANbus, SCI, SPI |
Product Description
S9S12XS128J1MALR Current Sense Resistors Ic Mcu 16bit 128kb Flash 112lqfp
HCS12X HCS12X Microcontroller IC 16-Bit 40MHz 128KB (128K x 8) FLASH 112-LQFP (20x20)
Specifications of S9S12XS128J1MALR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | HCS12X |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 40MHz |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 91 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 112-LQFP |
| Supplier Device Package | 112-LQFP (20x20) |
| Base Product Number | S9S12 |
Features of S9S12XS128J1MALR
The timer module, pulse width modulator, analog-to-digital converters, and the periodic interrupt timer provide a software programmable option to freeze the module status when the background debug module is active. This is useful when debugging application software. For detailed description of the behavior of the ATD, TIM, PWM, and PIT when the background debug module is active consult the corresponding section.
Applications of S9S12XS128J1MALR
The MCU security mechanism prevents unauthorized access to the Flash memory. For a detailed description of the security features refer to the S12XS9SEC section
Environmental & Export Classifications of S9S12XS128J1MALR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
