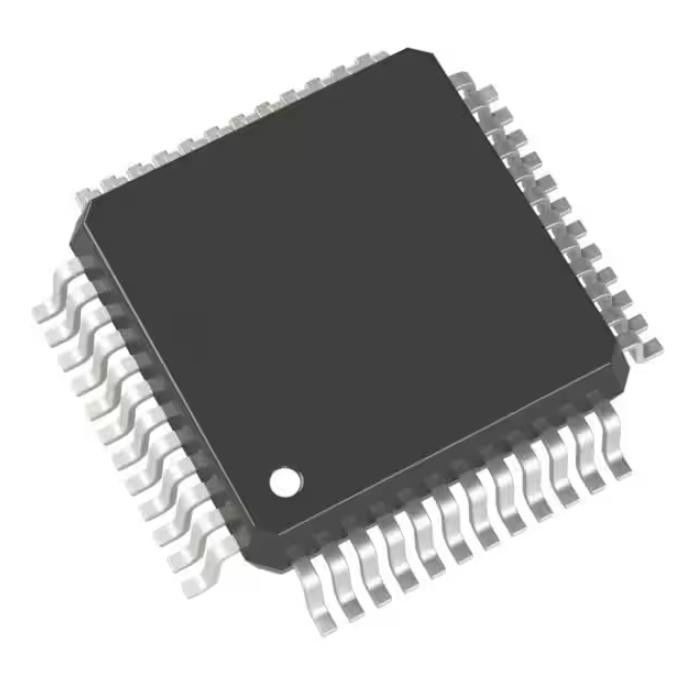

S9S08DN32F2CLF Current Sense Resistors Ic Mcu 8bit 32kb Flash 48lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S9S08DN32F2CLF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | S08 | Package: | Tray |
|---|---|---|---|
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
| Core Processor: | S08 | Core Size: | 8-Bit |
| Speed: | 40MHz | Connectivity: | I²C, LINbus, SCI, SPI |
Product Description
S9S08DN32F2CLF Current Sense Resistors Ic Mcu 8bit 32kb Flash 48lqfp
S08 S08 Microcontroller IC 8-Bit 40MHz 32KB (32K x 8) FLASH 48-LQFP (7x7)
Specifications of S9S08DN32F2CLF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | S08 |
| Package | Tray |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I²C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 39 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Base Product Number | S9S08 |
On-Chip Memory of S9S08DN32F2CLF
• Flash read/program/erase over full operating voltage and temperature
— MC9S08DN60 = 60K
— MC9S08DN48 = 48K
— MC9S08DN32 = 32K
— MC9S08DN16 = 16K
• Up to 2K EEPROM in-circuit programmable memory; 8-byte single-page or 4-byte dual-page erase sector; Program and Erase while executing Flash; Erase abort
• Up to 2K random-access memory (RAM)
Applications of S9S08DN32F2CLF
• 53 general-purpose input/output (I/O) pins and 1 input-only pin
• 24 interrupt pins with selectable polarity on each pin
• Hysteresis and configurable pull device on all input pins.
• Configurable slew rate and drive strength on all output pins.
Environmental & Export Classifications of S9S08DN32F2CLF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
