S9S08AW32E5CFGER Current Sense Resistors Ic Mcu 8bit 32kb Flash 44lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S9S08AW32E5CFGER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | S08 | Package: | Tape & Reel (TR) |
|---|---|---|---|
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
| Core Processor: | S08 | Core Size: | 8-Bit |
| Speed: | 40MHz | Connectivity: | I²C, SCI, SPI |
Product Description
S9S08AW32E5CFGER Current Sense Resistors Ic Mcu 8bit 32kb Flash 44lqfp

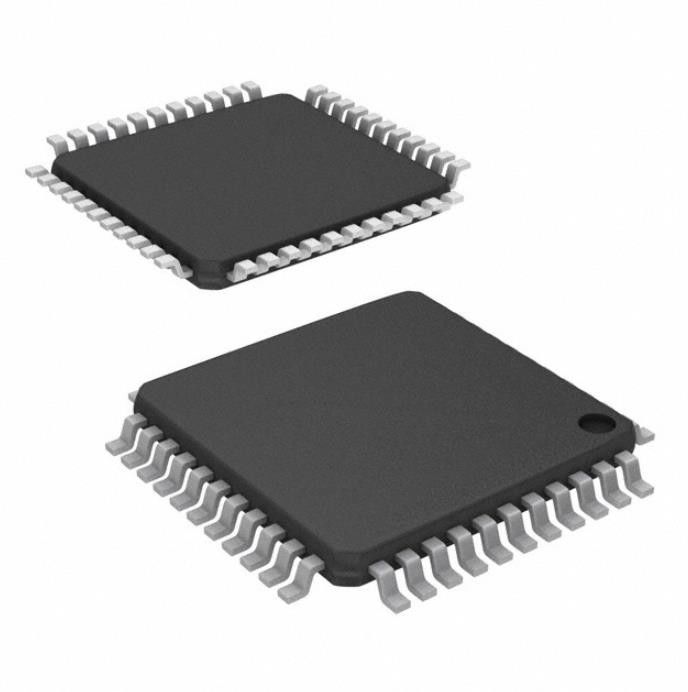

S08 S08 Microcontroller IC 8-Bit 40MHz 32KB (32K x 8) FLASH 44-LQFP (10x10)
Specifications of S9S08AW32E5CFGER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | S08 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I²C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LQFP |
| Supplier Device Package | 44-LQFP (10x10) |
| Base Product Number | S9S08 |
System Benefits of S9S08AW32E5CFGER
• The RX72N 32-bit MCU is a high-performance product that operates at 240 MHz with a line up max of 224 pins, so youcan use many functions without duplicating pins
• Performs TFT display processing that requires high performance, and high-quality audio through the synchronous serial interface (SSI) with one chip
• The HS3004 sensor measures the temperature inside the equipment and helps detect abnormalities
• RX flagship MCU with highest performance
• RXv3 core and high-performance operation at 240 MHz
• 120 MHz RXv2 core MCU
• Large ROM/RAM, enhanced security, connectivity and HMI
• Wide VIN dual-standard Buck regulator with 3 A / 3 A continuous output current
• Efficient asynchronous Buck regulator
• Good for network and communication equipment, industrial control, point-of-load regulators
• Relative humidity and temperature sensor
• High-accuracy humidity and temperature sensing for environmental monitoring
Applications of S9S08AW32E5CFGER
Existing inventory will be shipped until depleted Both the new and the old PQ box labeling will be shipped in parallel for a certain transition period until all finished product inventories are consumed in NXP warehouse stocks.
Environmental & Export Classifications of S9S08AW32E5CFGER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
