S912XEQ384J3VALR Current Sense Resistors Ic Mcu 16bit 384kb Flash 112lqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S912XEQ384J3VALR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | NXP USA Inc. | Series: | HCS12X |
|---|---|---|---|
| Package: | Tape & Reel (TR) | Product Status: | Active |
| Digi-Key Programmable: | Not Verified | Core Processor: | HCS12X |
| Core Size: | 16-Bit | Speed: | 50MHz |
Product Description

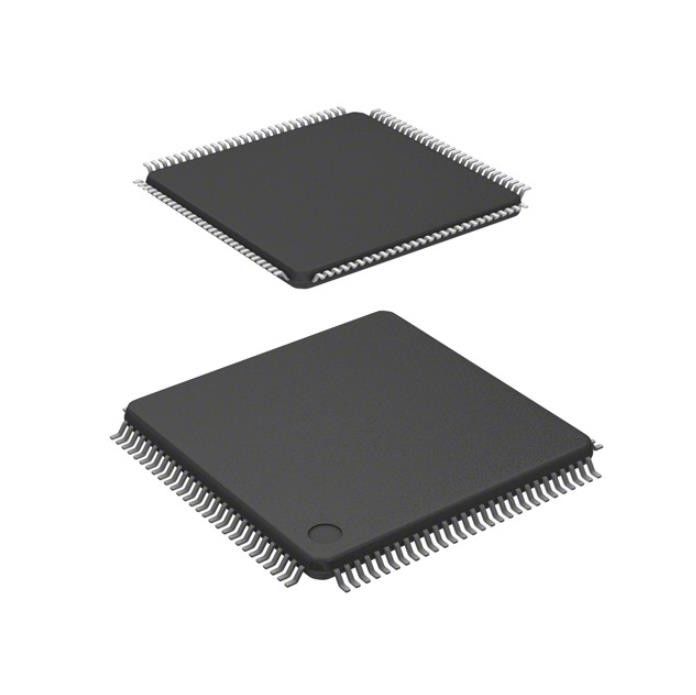

S912XEQ384J3VALR Current Sense Resistors Ic Mcu 16bit 384kb Flash 112lqfp
HCS12X HCS12X Microcontroller IC 16-Bit 50MHz 384KB (384K x 8) FLASH 112-LQFP (20x20)
Specifications of S912XEQ384J3VALR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | HCS12X |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 91 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 112-LQFP |
| Supplier Device Package | 112-LQFP (20x20) |
| Base Product Number | S912 |
FEATURES of S912XEQ384J3VALR
1. CAN Options:
Versions with 5 CAN modules will have CAN0, CAN1, CAN2, CAN3 and CAN4.
Versions with 4 CAN modules will have CAN0, CAN1, CAN2 andCAN4.
Versions with 3 CAN modules will have CAN0, CAN1 and CAN4.
Versions with 2 CAN modules will have CAN0 and CAN4.
Versions with 1 CAN module will have CAN0.
2. SCI Options:
Versions with 8 SCI modules will have SCI0, SCI1, SCI2, SCI3, SCI4, SCI5, SCI6 and SCI7.
Versions with 7 SCI modules will have SCI0, SCI1, SCI2, SCI3, SCI4, SCI5, and SCI6.
Versions with 6 SCI modules will have SCI0, SCI1, SCI2, SCI3, SCI4 and SCI5.
Versions with 5 SCI modules will have SCI0, SCI1, SCI2, SCI3 and SCI4.
Versions with 4 SCI modules will have SCI0, SCI1, SCI2 and SCI
Versions with 3 SCI modules will have SCI0, SCI1 and SCI2.
Versions with 2 SCI modules will have SCI0 and SCI1.
Versions with 1 SCI module will have SCI0.
3. SPI Options:
Versions with 3 SPI modules will have SPI0, SPI1 and SPI2.
Versions with 2 SPI modules will have SPI0 and SPI1.
Versions with 1 SPI modules will have SPI0.
4. IIC Options:
Versions with 2 IIC modules will have IIC0 and IIC1.
Versions with 1 IIC module will have IIC0.
5. TIM available via rerouting on EP100,EP768 devices 80/112/144 pinout options
6. A/D is the number of modules/total number of A/D channels.
7. I/O is the sum of ports capable to act as digital input or output. For details see the “Port Availability by
Package Option” table in the MCS12XE Data Sheet.
8. I/O is the sum of ports capable to act as digital input or output. For details see the “Port Availability by Package Option” table in the MCS12XE Data Sheet.
9. Can only execute code from RAM
Applications of S912XEQ384J3VALR
In this example, the MC9S12XE is implementing the features of a typical car body controller application. The module interfaces with the main CAN buses distributed in the car using the on-chip MSCAN module whereas the LIN bus communicates with functions local to the body controller. In both cases the communication functions are managed by the XGATE independently of the CPU. The MC9S12XE provides direct control of power drivers for lights and pumps and reading of sensors, using the on-chip PWM and ATD modules. Finally, the SPI interface to the RF receiver provides the interface to the car remote access system.
