S912XDG128F2MAAR Current Sense Resistors Ic Mcu 16bit 128kb Flash 80qfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S912XDG128F2MAAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | NXP USA Inc. | Series: | HCS12X |
|---|---|---|---|
| Package: | Tape & Reel (TR) | Product Status: | Not For New Designs |
| Digi-Key Programmable: | Not Verified | Core Processor: | HCS12X |
| Core Size: | 16-Bit | Speed: | 80MHz |
Product Description
S912XDG128F2MAAR Current Sense Resistors Ic Mcu 16bit 128kb Flash 80qfp

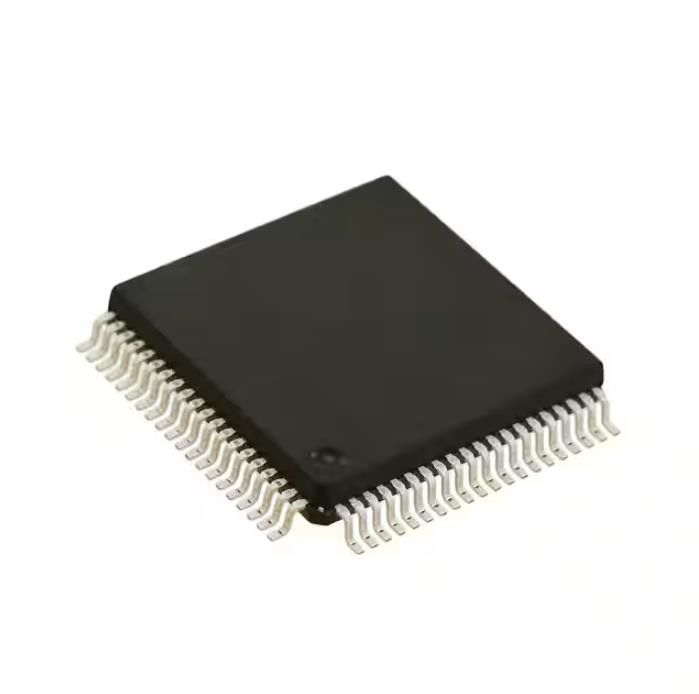

HCS12X HCS12X Microcontroller IC 16-Bit 80MHz 128KB (128K x 8) FLASH 80-QFP (14x14)
Specifications of S912XDG128F2MAAR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | HCS12X |
| Package | Tape & Reel (TR) |
| Product Status | Not For New Designs |
| Digi-Key Programmable | Not Verified |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, I²C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 59 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Data Converters | A/D 8x10b, 16x10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-QFP |
| Supplier Device Package | 80-QFP (14x14) |
| Base Product Number | S912 |
FEATURES of S912XDG128F2MAAR
• The orderable part number consists of the product type number extended with characters to make it unique according to its packing. A code 128 liner bar code will be added to this field.
• Each character in a Code 128 symbol begins with a bar and ends with a space (except for the stop character which adds an extra bar). Each is made up of three bars and three spaces. The bars and spaces have 4 different
widths (1, 2, 3 or 4 units) with the sum of the bar widthsbeing even and the sum of the spaces being odd for a total of 11 units per character.
• Both the new and the old PQ box labeling will be shippedin parallel for a certain transition period until all finished product inventories are consumed in NXP warehouse stocks.
Applications of S912XDG128F2MAAR
Existing inventory will be shipped until depleted Both the new and the old PQ box labeling will be shipped in parallel for a certain transition period until all finished product inventories are consumed in NXP warehouse stocks.
Environmental & Export Classifications of S912XDG128F2MAAR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
