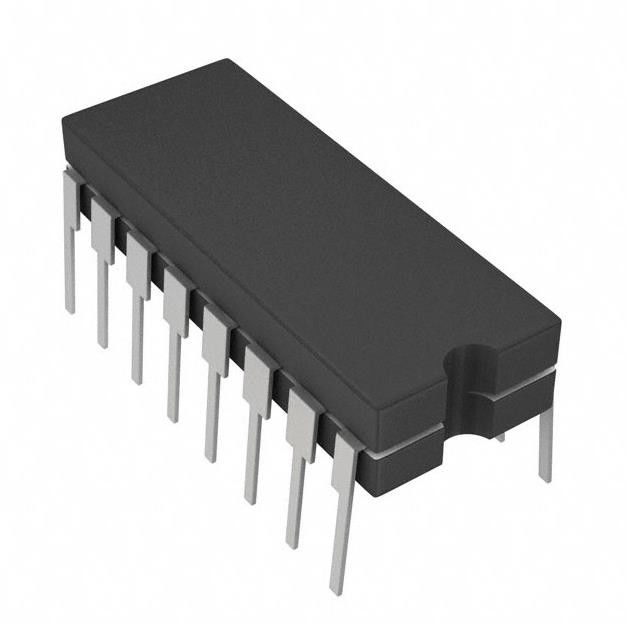

DG403AK Integrated Circuit IC Chip Switch 2:1 30Ohm 16-CDIP 2 Circuit
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DG403AK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Multiplexer/Demultiplexer Circuit: | 2:1 | On-State Resistance (Max): | 30Ohm |
|---|---|---|---|
| Channel-to-Channel Matching (ΔRon): | 500mOhm | Voltage - Supply, Single (V+): | 10V ~ 30V |
| Voltage - Supply, Dual (V±): | ±4.5V ~ 20V | Switch Time (Ton, Toff) (Max): | 150ns, 100ns |
| Charge Injection: | 10pC | Channel Capacitance (CS(off), CD(off)): | 12pF, 12pF |
| Number Of Circuits: | 2 | ||
Product Description
DG403AK Integrated Circuit IC Chip Switch 2:1 30Ohm 16-CDIP 2 Circuit
IC SWITCH SPDT X 2 30OHM 16CDIP
Specifications of DG403AK
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:01 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 30Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |
| Base Product Number | DG403 |
Features of DG403AK
Number of Circuits:2
On-State Resistance (Max):30Ohm
Channel-to-Channel Matching (ΔRon):500mOhm
Voltage - Supply, Single (V+):10V ~ 30V
Voltage - Supply, Dual (V±):±4.5V ~ 20V
Switch Time (Ton, Toff) (Max):150ns, 100ns
Environmental & Export Classifications of DG403AK
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
