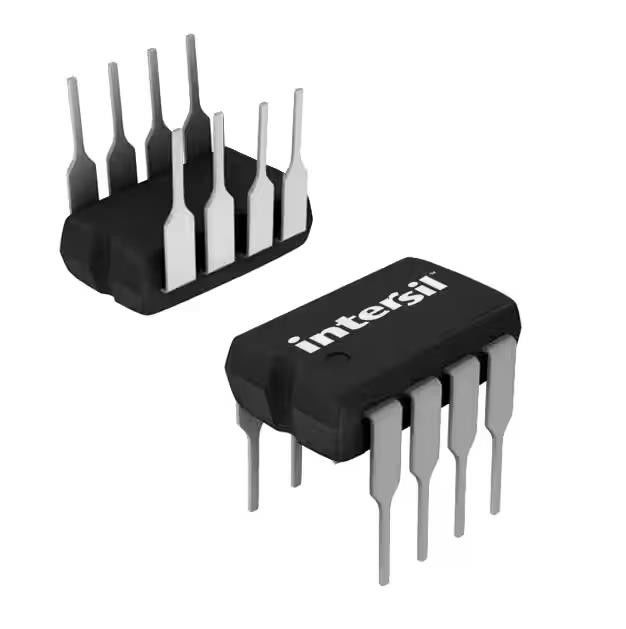

HA7-2525-5 OPAMP GP 1 CIRCUIT 8CERDIP DIP IC Sockets 20 MHz
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | HA7-2525-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Slew Rate: | 120V/µs |
|---|---|---|---|
| Gain Bandwidth Product: | 20 MHz | Current - Input Bias: | 125 NA |
| Voltage - Input Offset: | 5mV | Current - Supply: | 4mA |
| Current - Output / Channel: | 20 MA | Voltage - Supply Span (Min): | 8 V |
| Voltage - Supply Span (Max): | 36 V | ||
Product Description
HA7-2525-5 OPAMP GP 1 CIRCUIT 8CERDIP DIP IC Sockets 20 MHz
IC OPAMP GP 1 CIRCUIT 8CERDIP
Specifications of HA7-2525-5
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Renesas Electronics America Inc |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 120V/µs |
| Gain Bandwidth Product | 20 MHz |
| Current - Input Bias | 125 nA |
| Voltage - Input Offset | 5 mV |
| Current - Supply | 4mA |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
| Base Product Number | HA7-2525 |
Features of HA7-2525-5
• High slew rate . . . . . . . . . . . . . . . . . . . . . . . . . . . 120V/µs
• Fast settling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200ns
• Full power bandwidth . . . . . . . . . . . . . . . . . . . . . . . . 2MHz
• Gain bandwidth (AV 3). . . . . . . . . . . . . . . . . . . . . 20MHz
• High input impedance . . . . . . . . . . . . . . . . . . . . . . 100M
• Low offset current. . . . . . . . . . . . . . . . . . . . . . . . . . . .10nA
• Compensation pin for unity gain capability
• Pb-free PDIP available (RoHS compliant)
Applications of HA7-2525-5
• Data acquisition systems
• RF amplifiers
• Video amplifiers
• Signal generators
Environmental & Export Classifications of HA7-2525-5
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
