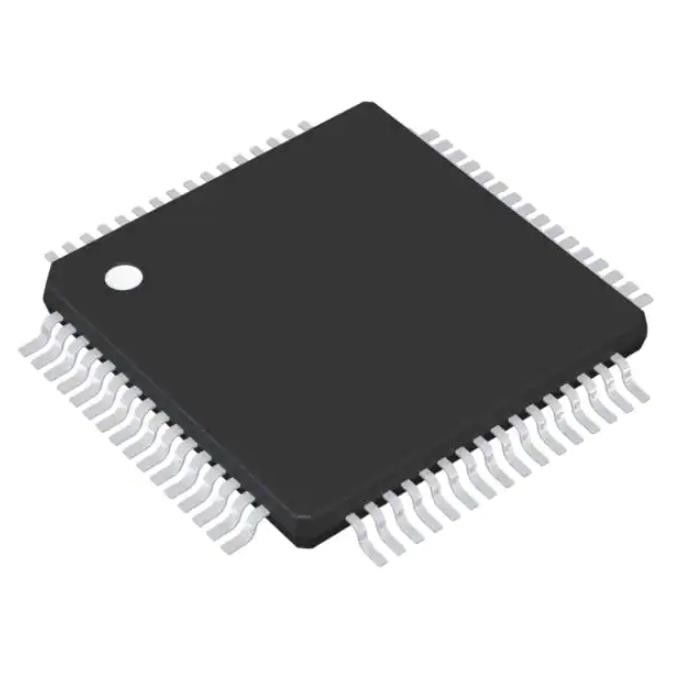

ADS8556IPMR Temperature Sensor Chip IC ADC 16BIT SAR 64LQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS8556IPMR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Number Of Bits: | 16 |
|---|---|---|---|
| Sampling Rate (Per Second): | 630k | Number Of Inputs: | 6 |
| Input Type: | Single Ended | Data Interface: | SPI, Parallel |
| Configuration: | S/H-ADC | Ratio - S/H:ADC: | 1:01 |
Product Description
ADS8556IPMR Temperature Sensor Chip IC ADC 16BIT SAR 64LQFP
16 Bit Analog to Digital Converter 6 Input 1 SAR 64-LQFP (10x10)
Specifications of ADS8556IPMR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 630k |
| Number of Inputs | 6 |
| Input Type | Single Ended |
| Data Interface | SPI, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| Mounting Type | Surface Mount |
| Base Product Number | ADS8556 |
Features of ADS8556IPMR
• Family of 16-, 14-, 12-Bit, Pin- and Software-Compatible ADCs
• Six SAR ADCs Grouped in Three Pairs
• Maximum Data Rate Per Channel with Internal Conversion Clock and Reference: ADS8556: 630 kSPS (PAR) or 450 kSPS (SER) ADS8557: 670 kSPS (PAR) or 470 kSPS (SER) ADS8558: 730 kSPS (PAR) or 500 kSPS (SER)
• Maximum Data Rate with External Conversion Clock and Reference: 800 kSPS (PAR) or 530 kSPS (SER)
• Pin-Selectable or Programmable InputVoltage Ranges: Up to 12 V
• Excellent Signal-to-Noise Performance: ADS8556: 91.5 dB, ADS8667: 85 dB, ADS8668: 73.9 dB
• Programmable and Buffered Internal Reference: 0.5 V to 2.5 V and 0.5 V to 3.0 V
• Comprehensive Power-Down Modes:
– Deep Power-Down (Standby Mode)
– Partial Power-Down
– Auto-Nap Power-Down
• Selectable Parallel or Serial Interface
• Operating Temperature Range: –40°Cto 125°
Applications of ADS8556IPMR
• Power Quality Measurement
• Protection Relays
• Multi-Axis Motor Control
• Programmable Logic Controllers
• Industrial Data Acquisition
Environmental & Export Classifications of ADS8556IPMR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
