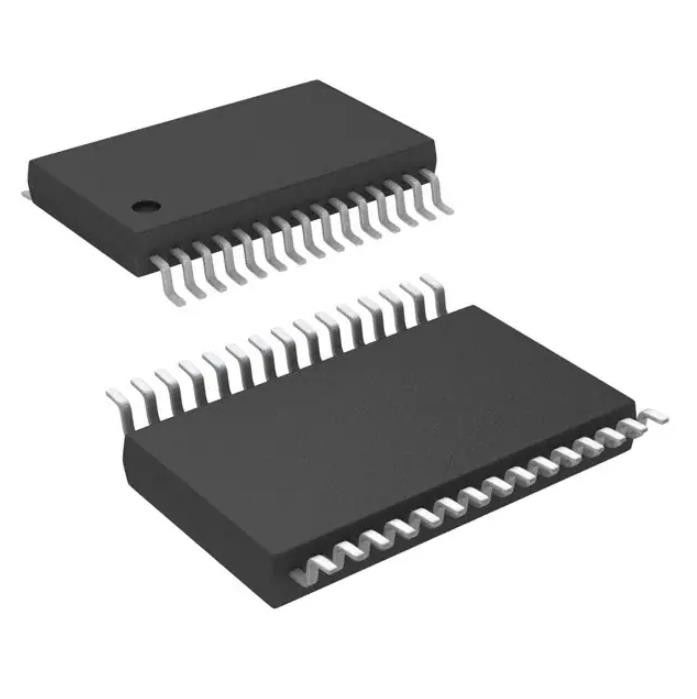

ADS7950SBDBT Temperature Sensor Chip Ic Adc 12bit Sar 30tssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS7950SBDBT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Texas Instruments | Series: | MicroPOWER™ |
|---|---|---|---|
| Package: | Tube | Product Status: | Active |
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 1M |
| Number Of Inputs: | 4 | Input Type: | Single Ended |
Product Description
ADS7950SBDBT Temperature Sensor Chip Ic Adc 12bit Sar 30tssop
12 Bit Analog to Digital Converter 4 Input 1 SAR 30-TSSOP
Specifications of ADS7950SBDBT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | microPOWER™ |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 30-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 30-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7950 |
Features of ADS7950SBDBT
• 1-MHz Sample Rate Serial Devices
• Product Family of 12-, 10-, 8-Bit Resolution
• Zero Latency
• 20-MHz Serial Interface
• Analog Supply Range: 2.7 to 5.25 V
• I/O Supply Range: 1.7 to 5.25 V
• Two SW Selectable Unipolar, Input Ranges: 0 to VREF and 0 to 2 x VREF
• Auto and Manual Modes for Channel Selection
• 4-, 8-Channel Devices and 12-, 16-Channel Devices Share the Same Footprint
• Two Programmable Alarm Levels per Channel
• Four Individually Configurable GPIOsin TSSOP Package: One GPIO in VQFN Package
• Typical Power Dissipation: 14.5 mW (+VA 5 V, +VBD 3 V) at 1 MSPS
• Power-Down Current (1 μA)
• Input Bandwidth (47 MHz at 3 dB)
• 38-, 30-Pin TSSOP and 32-, 24-Pin VQFN Packages
Applications of ADS7950SBDBT
• PLC/IPC
• Optical Line Card Monitoring
• Medical Instrumentation
• Digital Power Supplies
• Multi-Channel, General-Purpose Signal Monitoring
• High-Speed Data Acquisition Systems
• High-Speed Closed-Loop Systems
Environmental & Export Classifications of ADS7950SBDBT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
