ADS7947SRTER Temperature Sensor Chip Ic Adc 12bit Sar 16wqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS7947SRTER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Number Of Bits: | 12 |
|---|---|---|---|
| Sampling Rate (Per Second): | 2M | Number Of Inputs: | 2 |
| Input Type: | Pseudo-Differential | Data Interface: | SPI |
| Configuration: | MUX-S/H-ADC | Ratio - S/H:ADC: | 1:01 |
Product Description

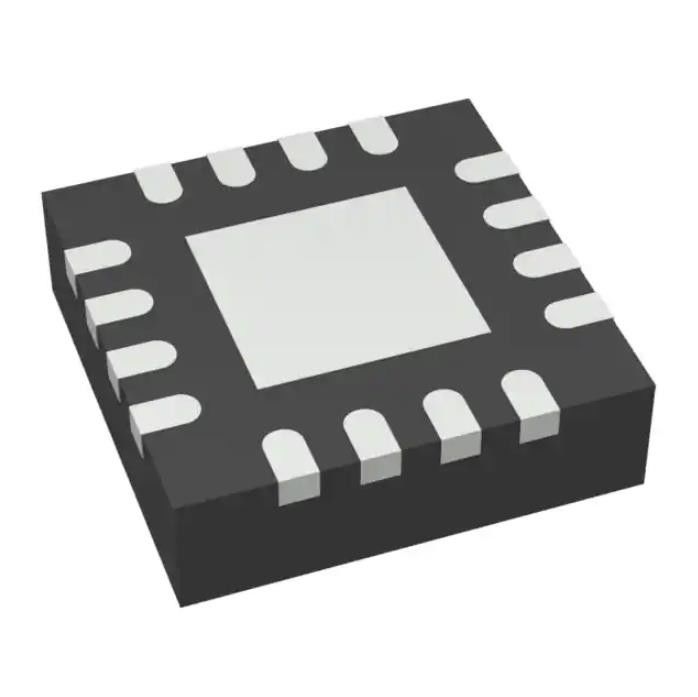

ADS7947SRTER Temperature Sensor Chip Ic Adc 12bit Sar 16wqfn
12 Bit Analog to Digital Converter 2 Input 1 SAR 16-WQFN (3x3)
Specifications of ADS7947SRTER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 2 |
| Input Type | Pseudo-Differential |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.65V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7947 |
Features of ADS7947SRTER
• Sample rate: 2 MSPS
• Pin-compatible family: 12-, 10-, 8-
bit
• High resolution, high throughput:
– ADS7947: 12 bit, 2.1 MSPS
– ADS7948: 10 bit, 2.57 MSPS
– ADS7949: 8 bit, 3 MSPS
• Excellent performance:
– No missing codes
– INL: 1 LSB (max)
– SNR: 72 dB (min)
• Low power:
– 7.5 mW at 2-MSPS operation
– Auto power-down at lower speeds:
– 3.8 mW at 500 kSPS
– 0.8 mW at 100 kSPS
– 0.16 mW at 20 kSPS
• Wide supply range:
– Analog: 2.7 V to 5.5 V
– Digital: 1.65 V to AVDD
• SPI-compatible serial interface
• Extended temperature range: –40°C
to +125°C
• Tiny footprint: 3-mm × 3-mm WQFN
Applications of ADS7947SRTER
• Communication systems
• Optical networking
• Medical instrumentation
• Battery-powered equipment
• Data acquisition systems
Environmental & Export Classifications of ADS7947SRTER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
