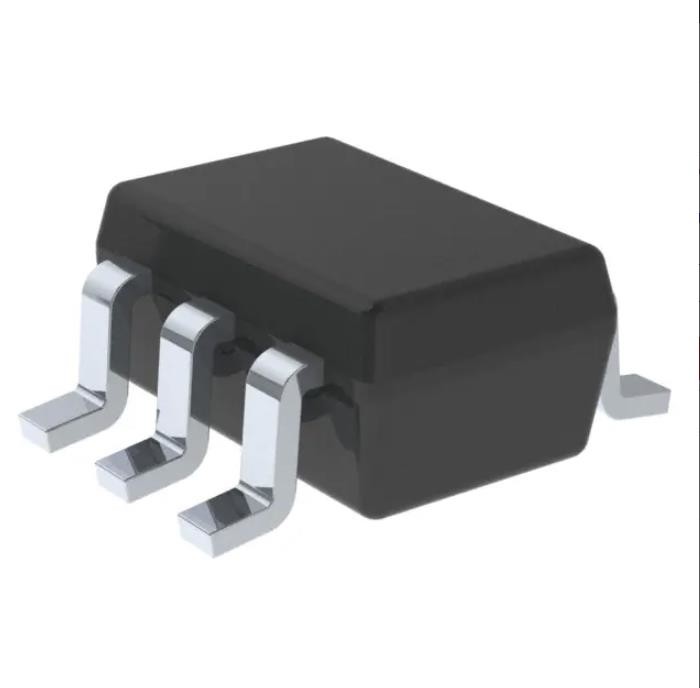

ADS7888SDCKT Temperature Sensor Chip Ic Adc 8bit Sar Sc70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS7888SDCKT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Number Of Bits: | 8 |
|---|---|---|---|
| Sampling Rate (Per Second): | 1.25M | Number Of Inputs: | 1 |
| Input Type: | Single Ended | Data Interface: | SPI |
| Configuration: | S/H-ADC | Ratio - S/H:ADC: | 1:01 |
Product Description
ADS7888SDCKT Temperature Sensor Chip Ic Adc 8bit Sar Sc70-6
8 Bit Analog to Digital Converter 1 Input 1 SAR SC-70-6
Specifications of ADS7888SDCKT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | microPOWER™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 1.25M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.35V ~ 5.25V |
| Voltage - Supply, Digital | 2.35V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7888 |
Features of ADS7888SDCKT
• 1.25-MHz Sample Rate Serial Device
• 10-Bit Resolution (ADS7887)
• 8-Bit Resolution (ADS7888)
• Zero Latency
• 25-MHz Serial Interface
• Supply Range: 2.35 V to 5.25 V
• Typical Power Dissipation at 1.25 MSPS:
– 3.8 mW at 3-V VDD
– 8 mw at 5-V VDD
• 0.35 LSB INL, DNL (ADS7887)
• 0.15 LSB INL, 0.1 LSB DNL (ADS7888)
• 61 dB SINAD, –84 dB THD (ADS7887)
• 49.5 dB SINAD, –67.5 dB THD (ADS7888)
• Unipolar Input Range: 0 V to VDD
• Power-Down Current: 1 µA
• Wide Input Bandwidth: 15 MHz at 3 dB
• 6-Pin SOT23 and SC70 Packages
Applications of ADS7888SDCKT
• Base Band Converters in Radio Communication
• Motor Current and Bus Voltage Sensorsin Digital Drives
• Optical Networking (DWDM, MEMS-Based Switching)
• Optical Sensors
• Battery-Powered Systems
• Medical Instrumentations
• High-Speed Data Acquisition Systems
• High-Speed Closed-Loop Systems
Environmental & Export Classifications of ADS7888SDCKT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
