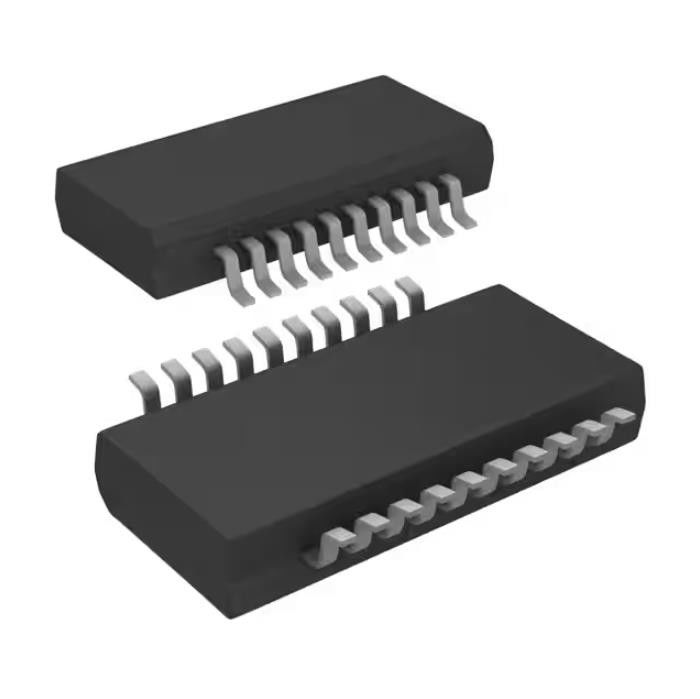

ADS7844EB Temperature Sensor Chip Ic Adc 12bit Sar 20ssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS7844EB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 200k |
| Number Of Inputs: | 4, 8 | Input Type: | Differential, Single Ended |
| Data Interface: | SPI | Configuration: | MUX-S/H-ADC |
Product Description
ADS7844EB Temperature Sensor Chip Ic Adc 12bit Sar 20ssop
12 Bit Analog to Digital Converter 4, 8 Input 1 SAR 20-SSOP
Specifications of ADS7844EB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-SSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7844 |
Features of ADS7844EB
● SINGLE SUPPLY: 2.7V to 5V
● 8-CHANNEL SINGLE-ENDED OR 4-CHANNEL DIFFERENTIAL INPUT
● UP TO 200kHz CONVERSION RATE
● ±1 LSB MAX INL AND DNL
● NO MISSING CODES
● 72dB SINAD
● SERIAL INTERFACE
● 20-LEAD QSOP AND 20-LEAD SSOP PACKAGES
● ALTERNATE SOURCE FOR MAX147
Applications of ADS7844EB
● DATA ACQUISITION
● TEST AND MEASUREMENT
● INDUSTRIAL PROCESS CONTROL
● PERSONAL DIGITAL ASSISTANTS
● BATTERY-POWERED SYSTEMS
Environmental & Export Classifications of ADS7844EB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
